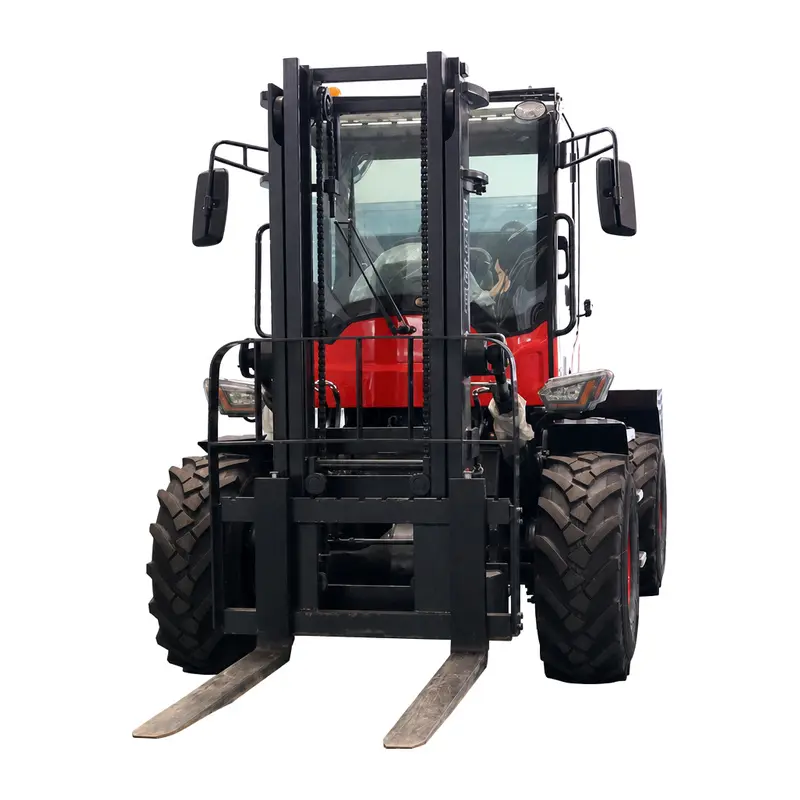

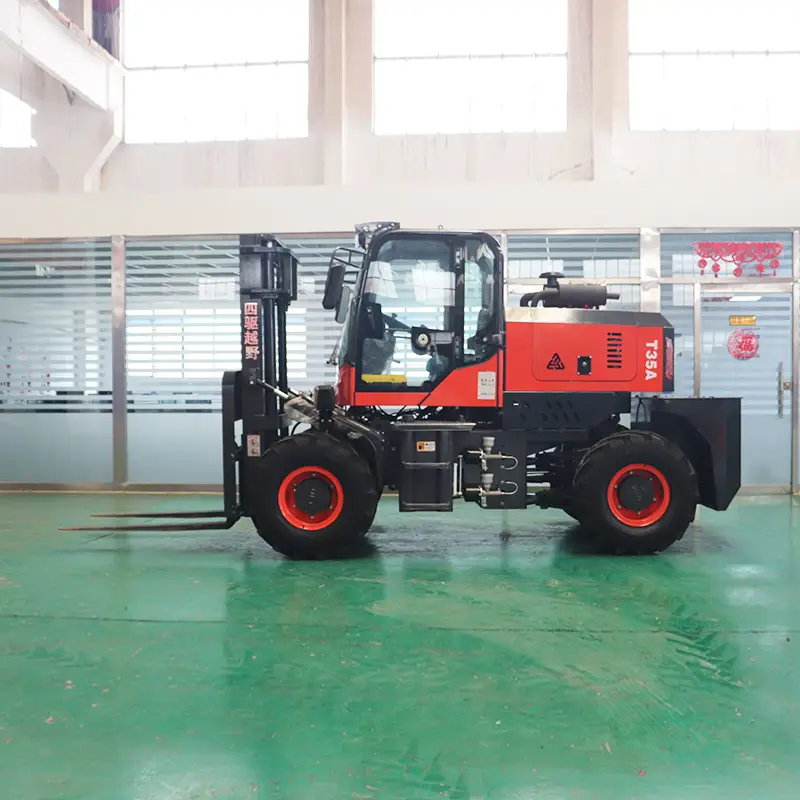

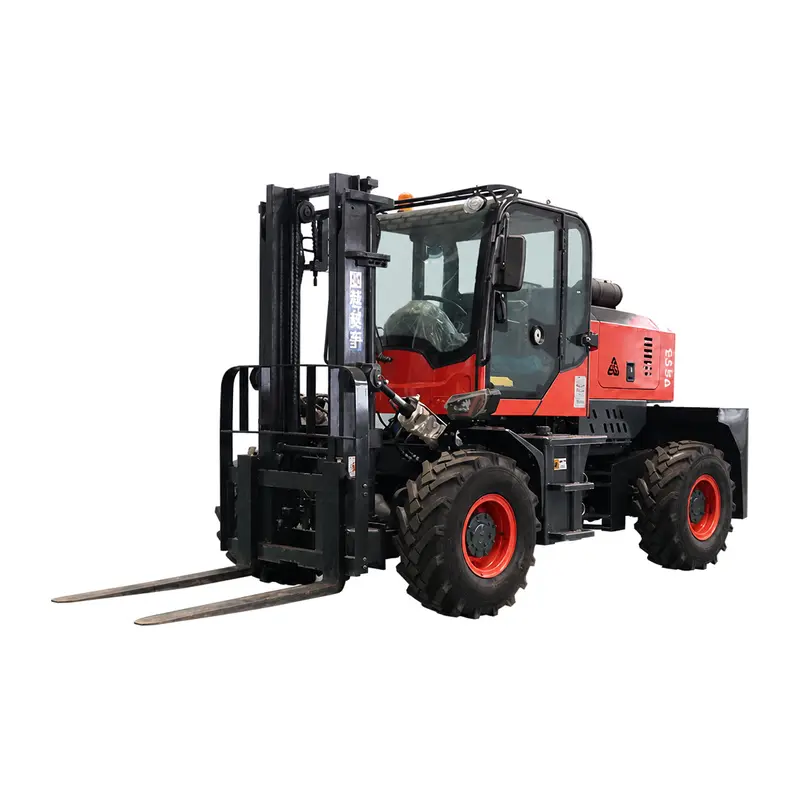

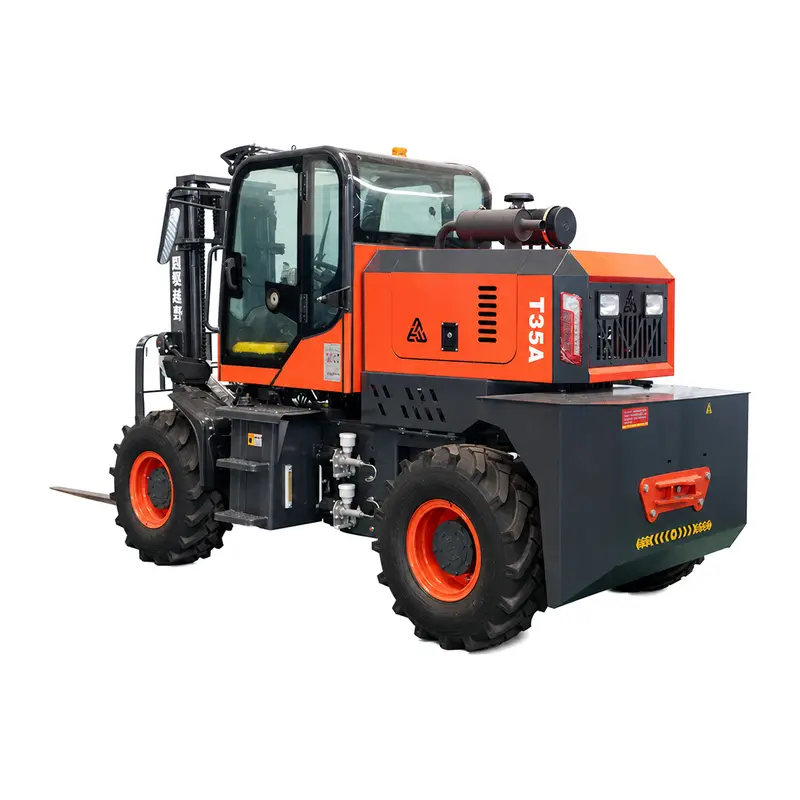

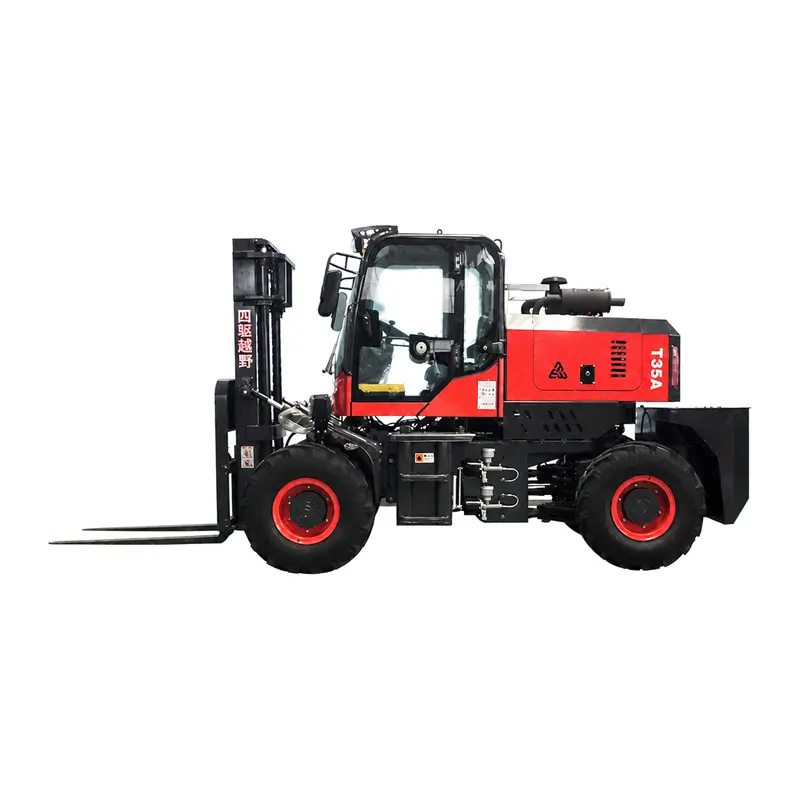

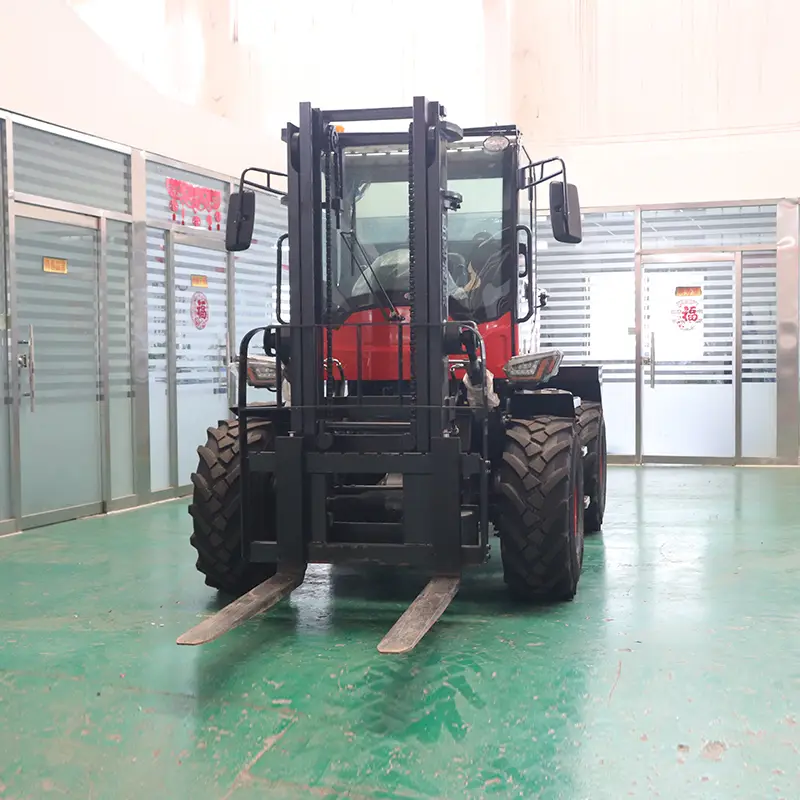

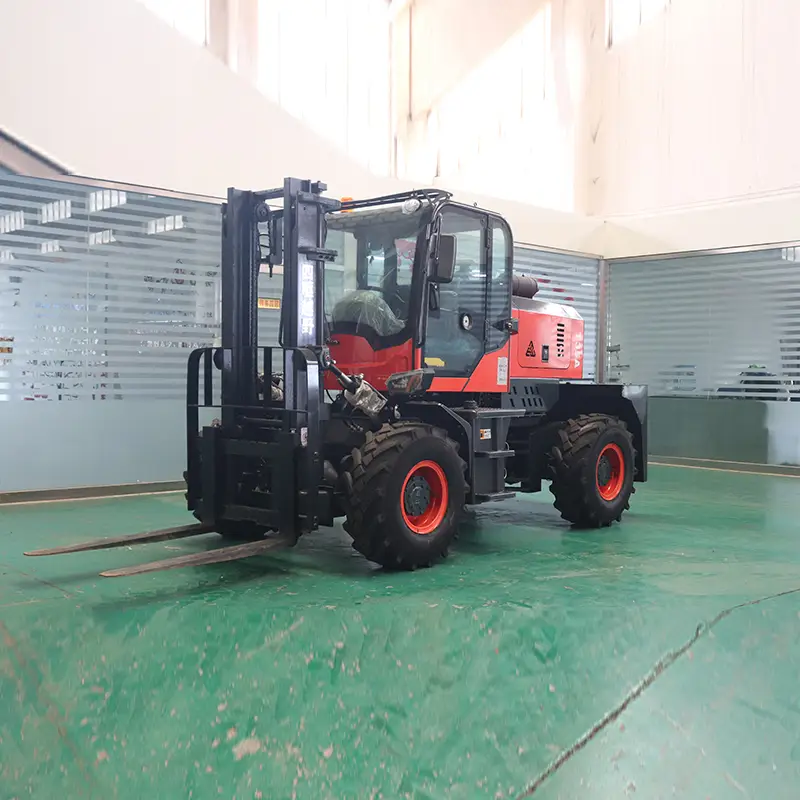

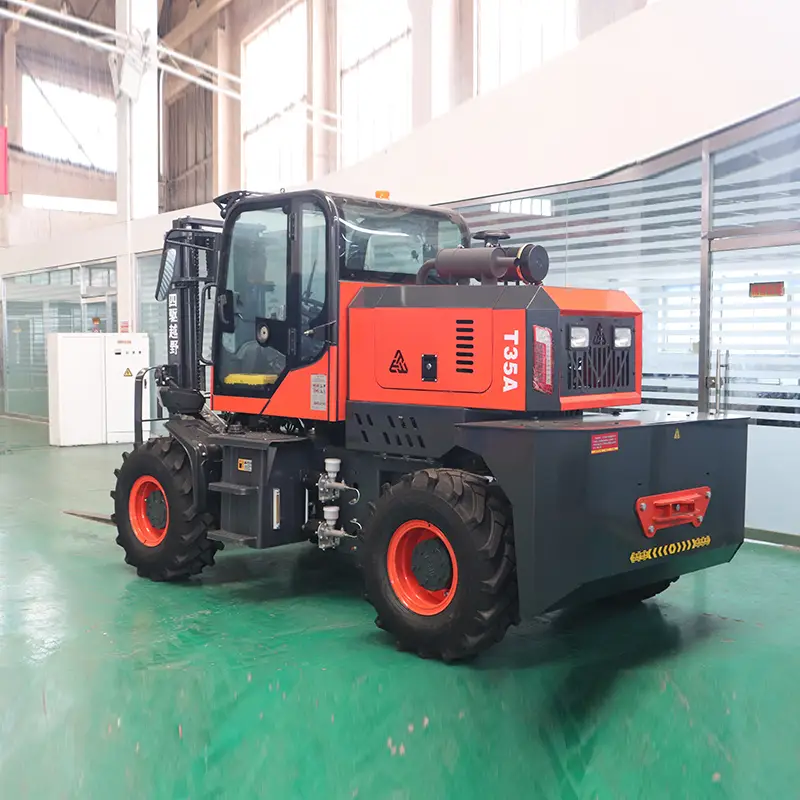

T35 Rear Steering All Terrain Forklift

Model number : T35(Back hinge)
Rated lifting weight: 3500kg	Engine model: Quanchai/Xichai/Yunnei493
Rated lifting height: 3000-6000mm	Drive mode: four-wheel drive
Load center distance: 600mm	Axle : Plus heavy integrated cast steel wheel reduction bridge
Minimum turning radius: 3200mm	Tire type :23.5/70-16
Maximum climbing Angle: <38°	wheelbase:2300mm
Minimum ground clearance: 350mm	Frame steel width: 160mm
Front/back Angle of frame :10.0/8.0	Fork length: 1220mm(optional)
Maximum operating speed :38km/h	Weight: 4500kg
Maximum hook traction: 25.0KN	Machine size: 3700/1850/2350mm
Transmission model :265 double high and low speed torque converter

Immediate consultation

Product Application:

1. Electrophoretic spray paint, the paint surface is smooth and not easy to rust.
2. Full hydraulic control, responsive and easy to operate.
3. Rear-wheel steering design, ultra-small turning radius, flexible in confined space.
4. Heavy-duty cast steel axle, strong load-bearing and reliable performance.
5. Thickened mast, strong bearing capacity and stable lifting operation.
6. Engineering rubber tires, good shock absorption, suitable for various working sites.
7. LED light, high brightness, energy saving for night operation.
8. Both sides of the engine compartment can be opened for convenient daily maintenance.
