| Model number : T35(Index axis) | |
| Rated lifting weight: 3500kg | Engine model: Xichai/Yunnei493 |
| Rated lifting height: 3000-6000mm | Drive mode: four-wheel drive |
| Load center distance: 600mm | Axle type: Integrated cast steel axle with wheel edge |
| Minimum turning radius: 3500mm | Tire type :23.5/70-16 |
| Maximum climbing Angle: <38° | wheelbase:2200mm |
| Minimum ground clearance: 350mm | Frame steel width: 160mm |
| Front/back Angle of frame :10.0/6.0 | Fork length: 1220mm(optional) |
| Maximum operating speed :38km/h | Weight: 4200kg |
| Maximum hook traction: 25.0KN | Machine size: 4100/1850/2200mm |
| Transmission model :265 double high and low speed torque converter | |

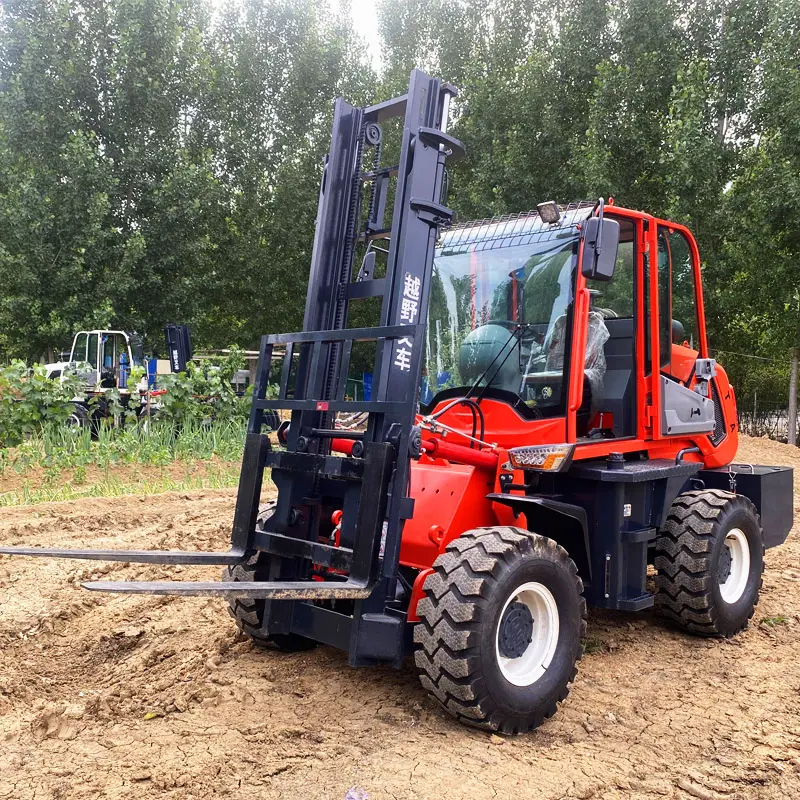

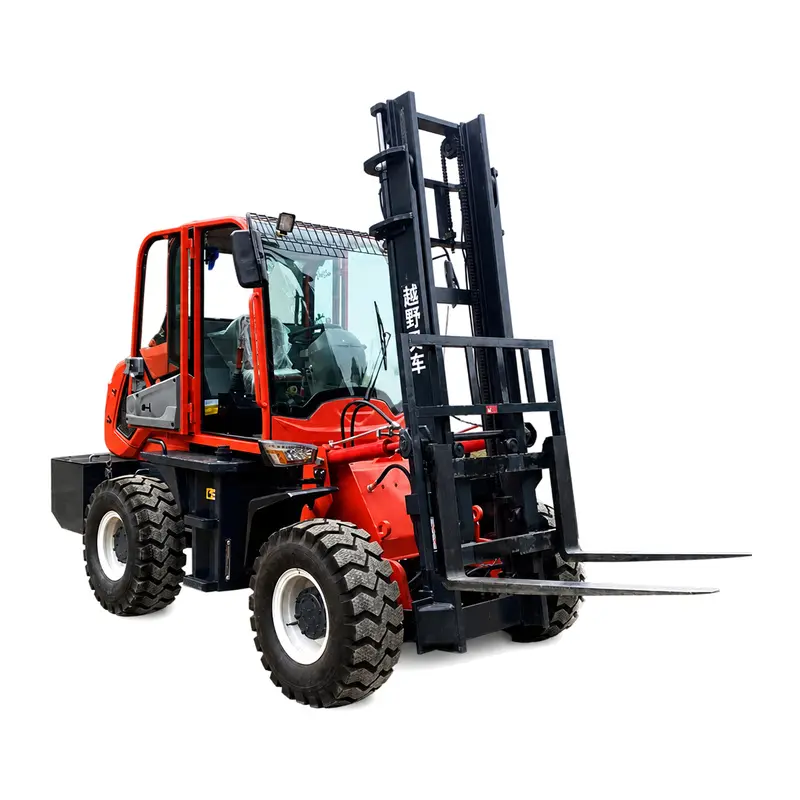

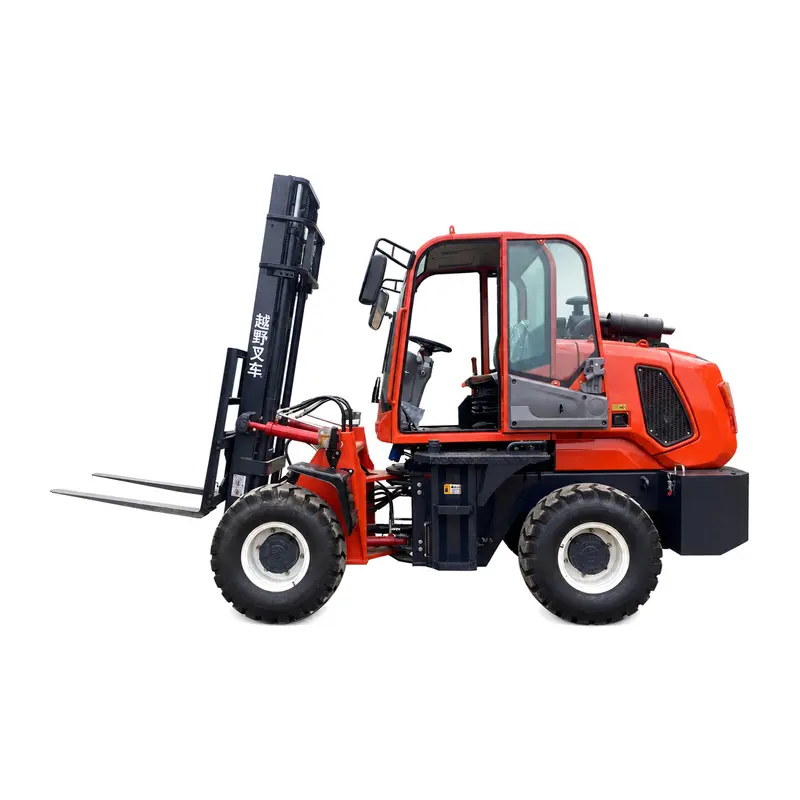

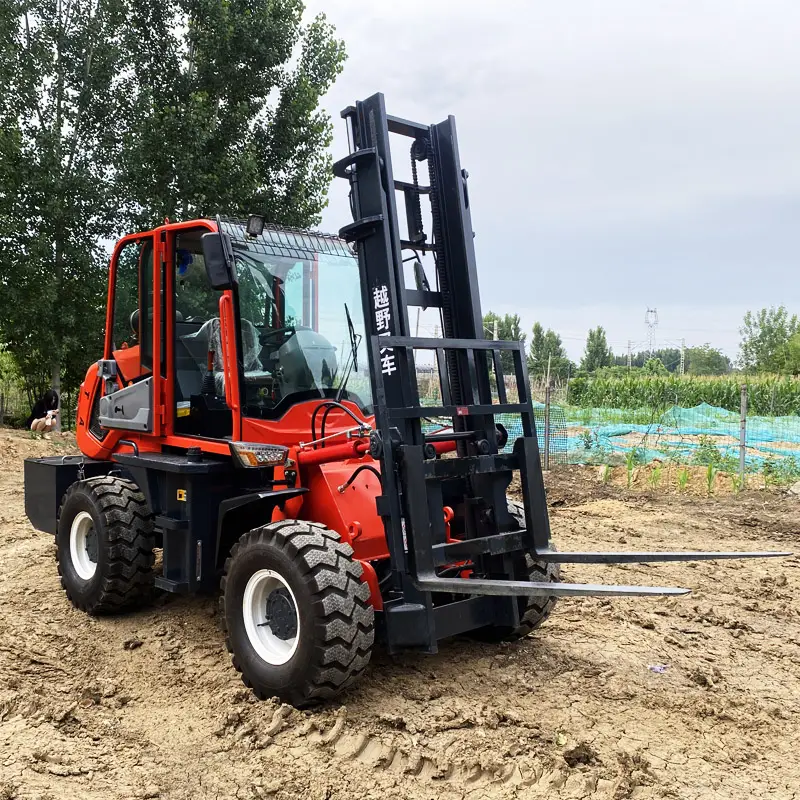

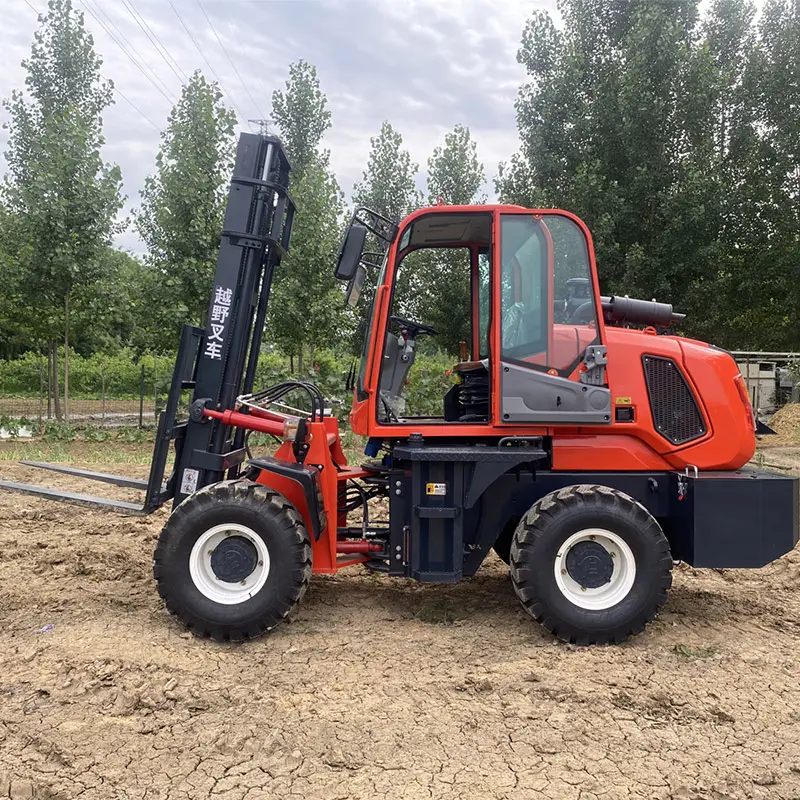

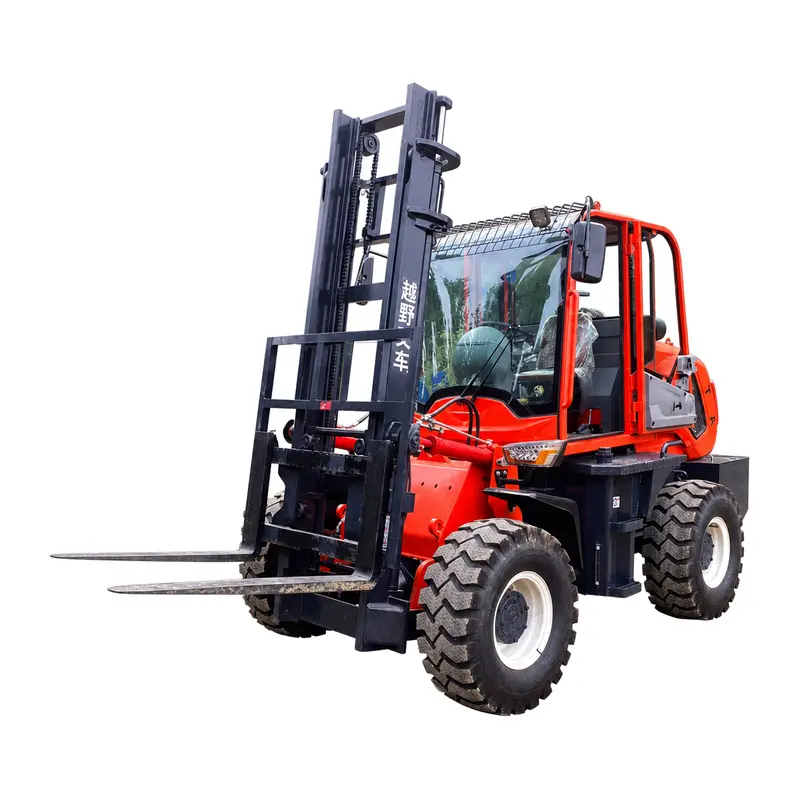

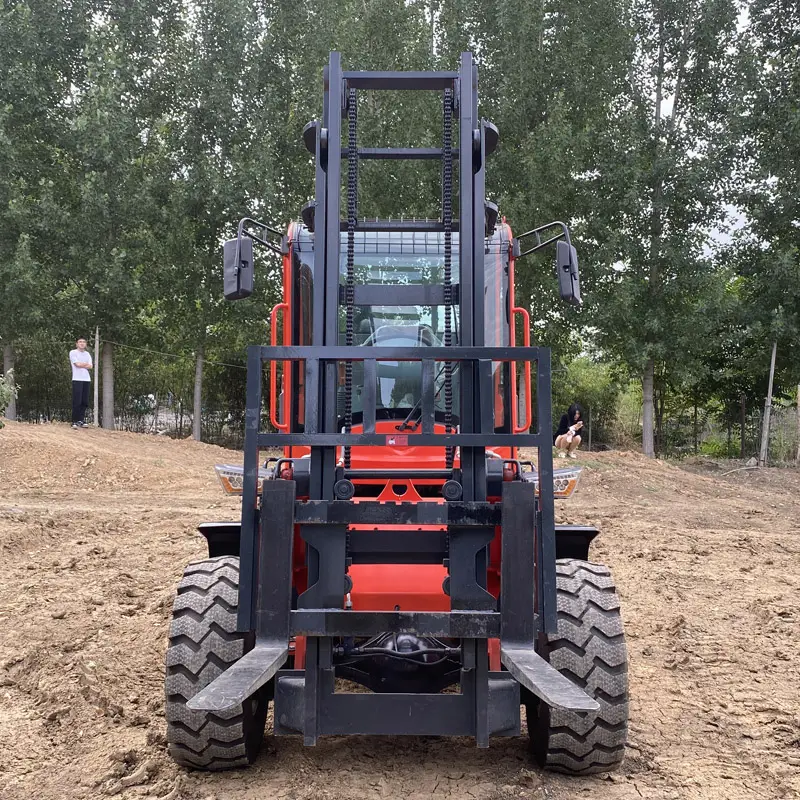

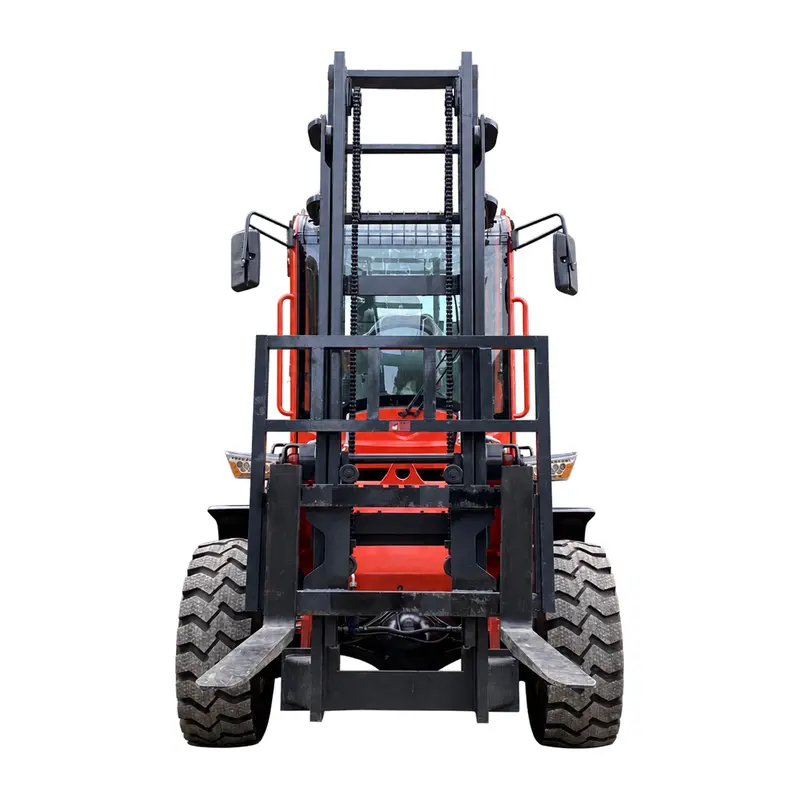

T35A All Terrain Forklift
Product Application:
1. Electrophoretic spray paint, the paint surface is smooth and not easy to rust.
2. Full hydraulic control, sensitive and convenient operation.
3. Hydraulic power steering wheel, flexible and labor-saving driving.
4. Standard long wheelbase design, stable driving with heavy load.
5. Thickened reinforced mast, strong bearing capacity and stable lifting.
6. Large-size off-road rubber tires, excellent grip on muddy and uneven ground.
7. LED working lamp, high brightness for night operation, energy saving.
8. Engine cover can be fully opened, simple and convenient for daily maintenance.
