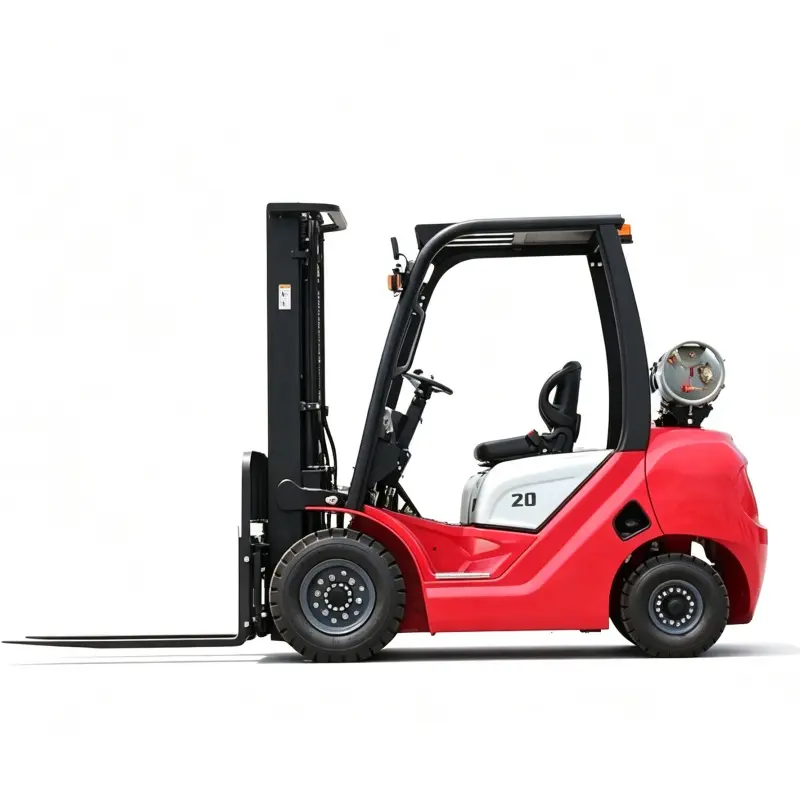

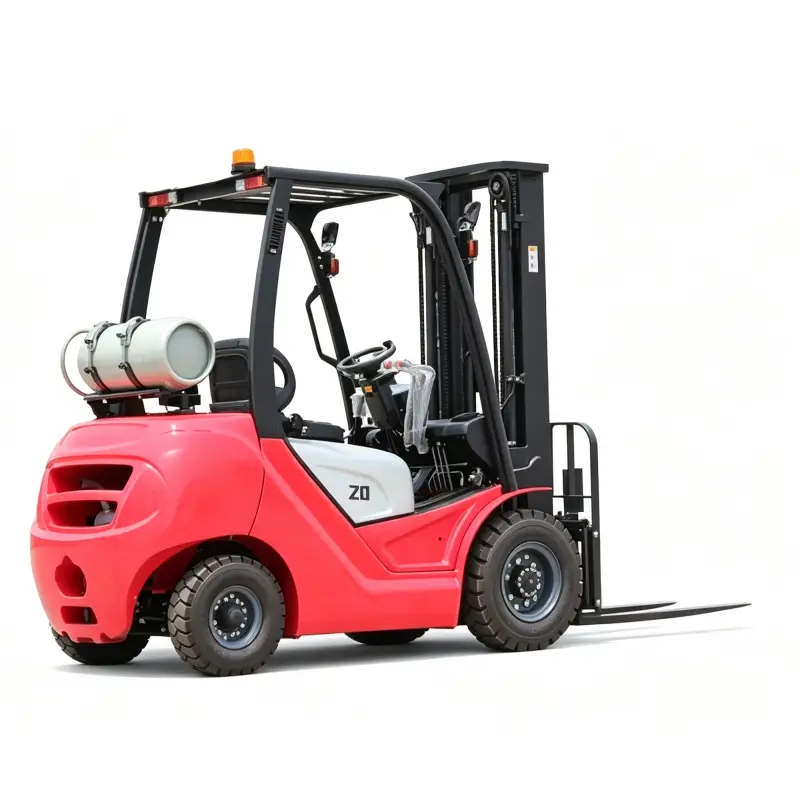

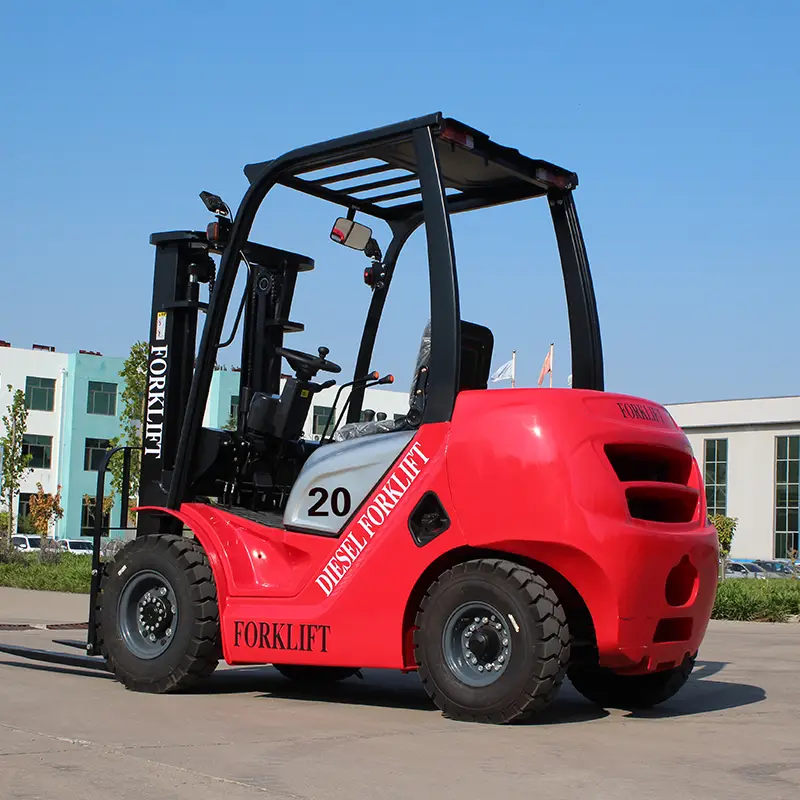

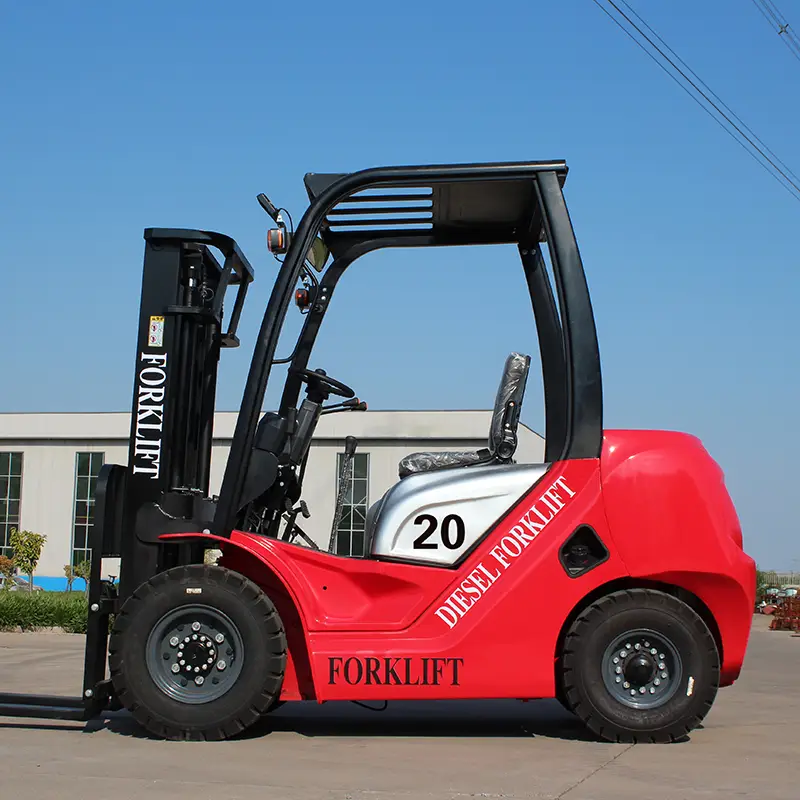

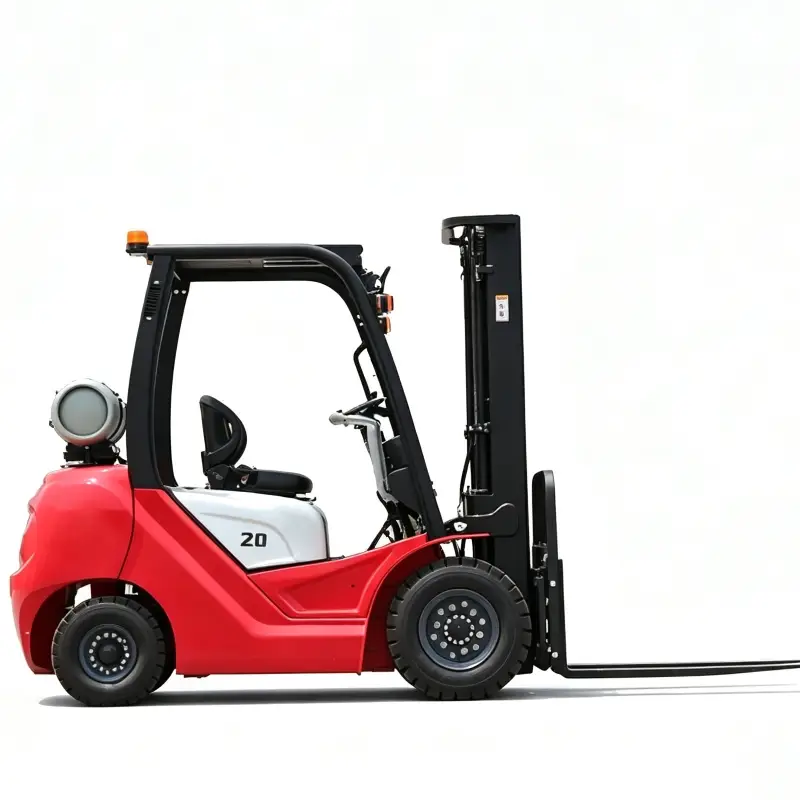

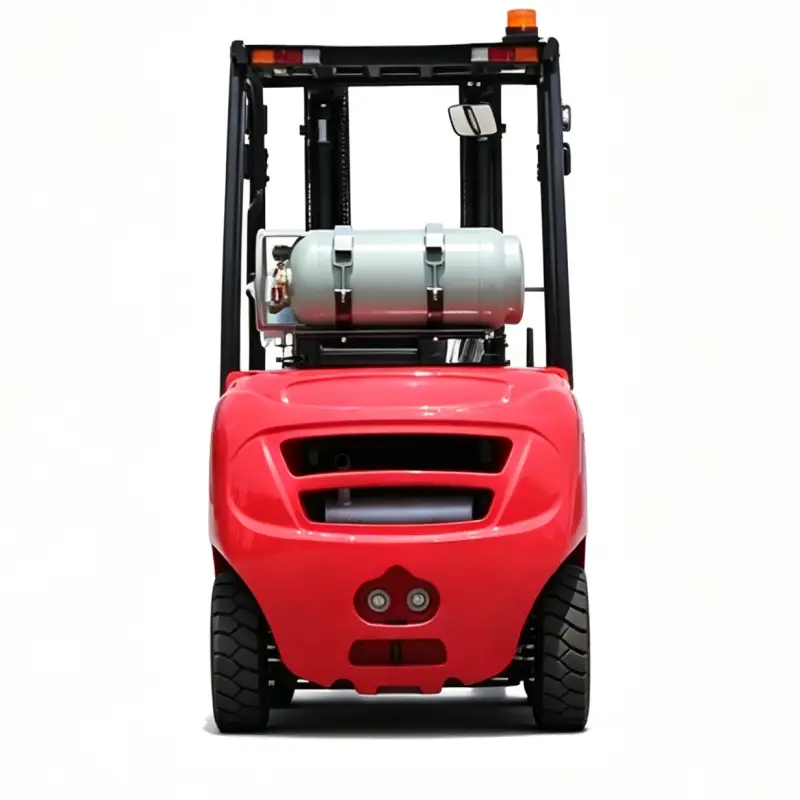

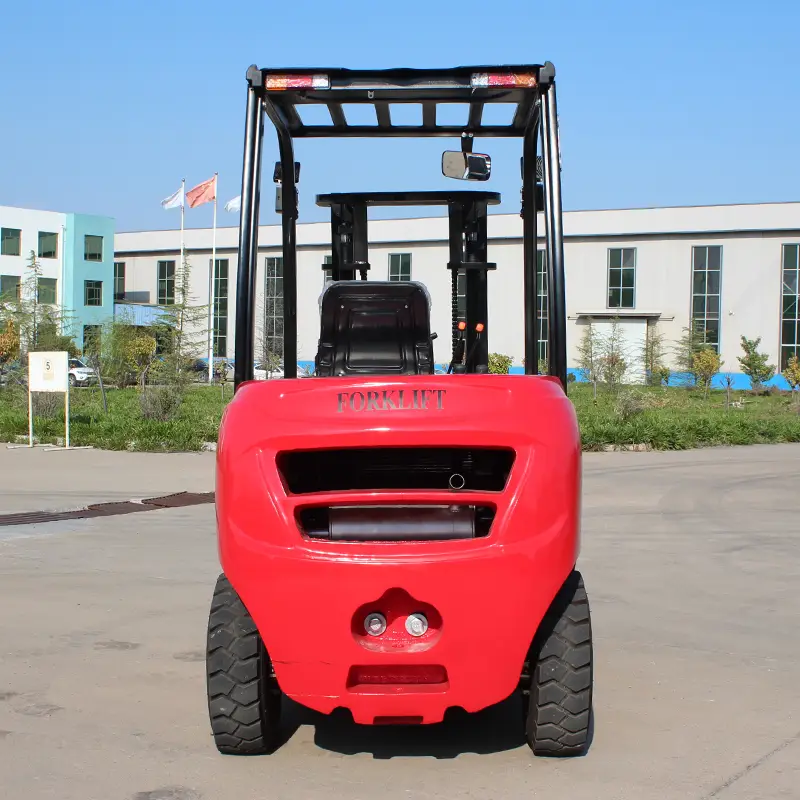

Product Profile:
| Item | Specification |
|---|---|
| Characteristics | |
| Model | HS-20K |
| driving mode | seated |
| rated capacity Q | 2000 kg |
| load center distance C | 500 mm |
| power mode | Diesel oil |
| wheelbase L1 | 1650 mm |
| Performance | |
| travel speed, unladen | 19 km/h |
| lifting speed, laden | 540 mm/s |
| lowering speed, laden | 450 mm/s |
| maximum negotiable gradient, laden | 20 % |
| Weight | |
| Self weight | 3260 kg |
| axle load: unloaded, front/rear | 1510/1750 kg |
| axle load: loaded, front/rear | 4890/570 kg |
| battery voltage /nominal capacity | 12/80h V/Ah |
| battery weight | — kg |
| Engine | |
| Rated output/r.p.m | 39/2650 kW |
| Rated torque/r.p.m | 160/1980 kW |
| No. of Cylinder | 4 |
| Bore × Stroke | 90×100 mm |
| Displacement | 2540 cc |
| Tyre | |
| tyre type | Solid fetus |
| wheels number (front/rear) | 2/2 |
| front track W3 | 970 mm |
| rear track W2 | 980 mm |
| tyre(front) | 7.00-12-12PR |
| tyre(rear) | 6.00-9-10PR |
| Size | |
| front overhang L2 | 441 mm |
| tilt of the mast, front/rear α/β | 6/12 ° |
| height,mast retraction H1 | 130 mm |
| free lift height H3 | — |
| overall maximum lift height H | 3000 mm |
| height, mast extended H2 | 2220 mm |
| overhead guard height H4 | 2220 mm |
| lateral Fork Adjustment (Outside of Forks)Max/Min W5 | — |
| fork size(L×W×T) | 401001070 mm |
| truck body length(fork excluded) L’ | 2595 mm |
| truck body width W1 | 1160 mm |
| turning radius R | 2480 mm |
| ground clearance under mast H5 | 115 mm |
| Transmission | |
| Manufacture | CHINA |
| Type | mechanical/Hydraulic power |
