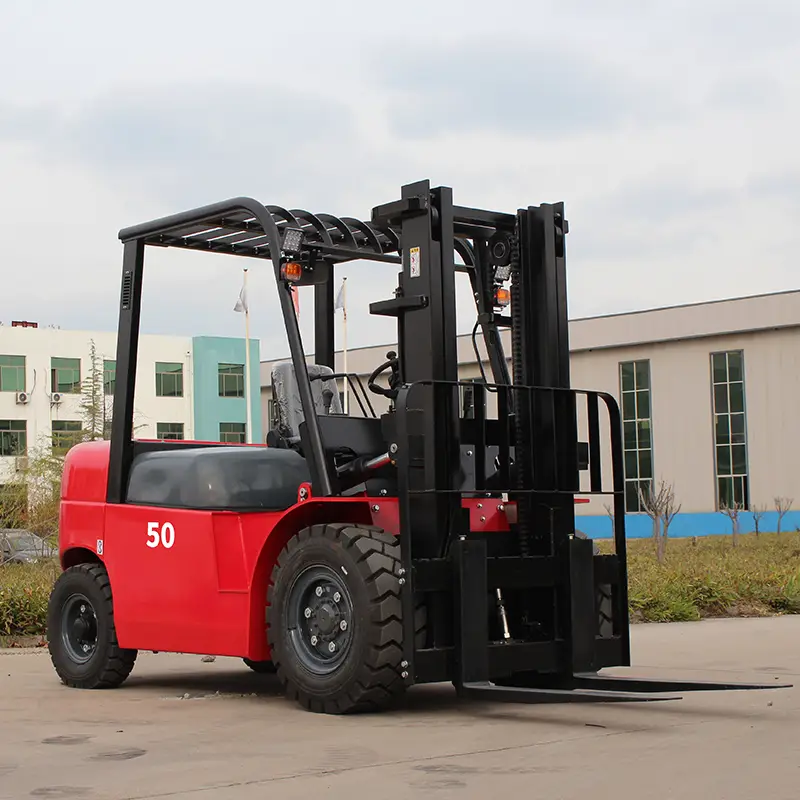

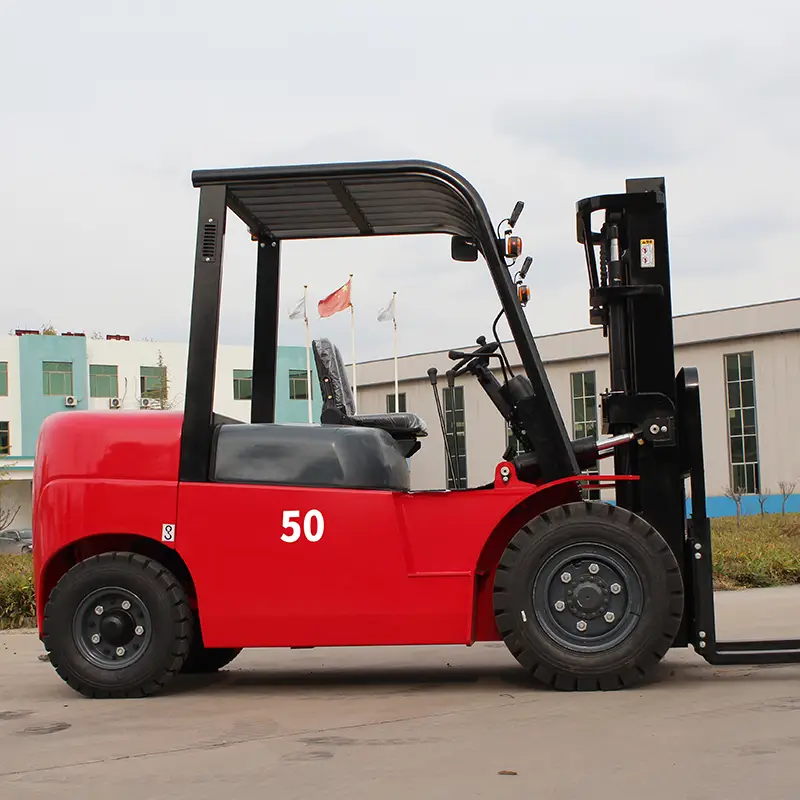

Product Profile:
| Item | Specification |
|---|---|
| Characteristics | |
| Model | HS-50H |
| driving mode | seated |
| rated capacity Q | 5000 kg |
| load center distance C | 500 mm |
| power mode | Diesel oil |
| wheelbase L1 | 2100 mm |
| Performance | |
| travel speed, unladen | 18.5 km/h |
| lifting speed, laden | 420 mm/s |
| lowering speed, laden | 450 mm/s |
| maximum negotiable gradient, laden | 20 % |
| Weight | |
| Self weight | 6660 kg |
| axle load: unloaded, front/rear | 2865/3795 kg |
| axle load: loaded, front/rear | 9680/1480 kg |
| battery voltage /nominal capacity | 24/80 V/Ah |
| battery weight | — kg |
| Engine | |
| Rated output/r.p.m | 48/2300 kW |
| Rated torque/r.p.m | 230/1600 N·m/rpm |
| No. of Cylinder | 4 |
| Bore × Stroke | 98×105 mm |
| Displacement | 2540 cc |
| Tyre | |
| tyre type | Solid fetus |
| wheels number (front/rear) | 2/2 |
| front track W3 | 1180 mm |
| rear track W2 | 1190 mm |
| tyre(front) | 300-15-18PR |
| tyre(rear) | 700-12-14PR |
| Size | |
| front overhang L2 | 560 mm |
| tilt of the mast, front/rear α/β | 6/12 ° |
| Mast Lowered height H1 | 2275 mm |
| Mast extended height(with backrest) H3 | 150 mm |
| overall maximum lift height H | 3000 mm |
| height, mast extended H2 | 2220 mm |
| overhead guard height H4 | 2350 mm |
| Min. ground clearance (Bottom of mast) W5 | 175 mm |
| fork size(L×W×T) | 501501070 mm |
| truck body length(fork excluded) L’ | 3240 mm |
| truck body width W1 | 1480 mm |
| turning radius R | 3050 mm |
| Transmission | |
| Manufacture | CHINA |
| Type | mechanical/Hydraulic power |
| Stage | F/R 1/1(2/2) |
