Product Details:

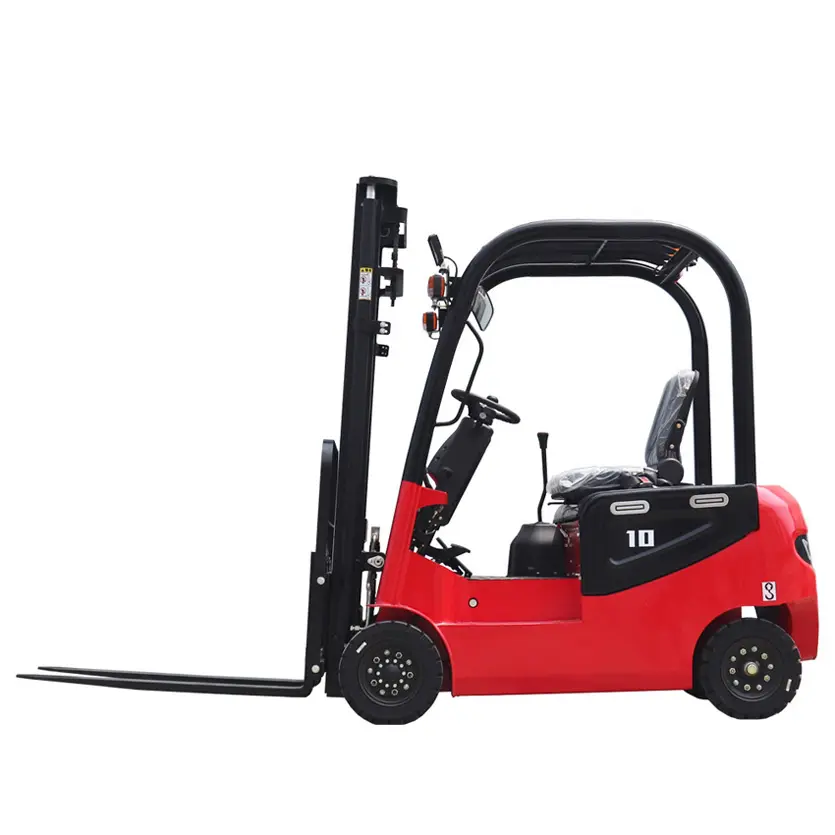

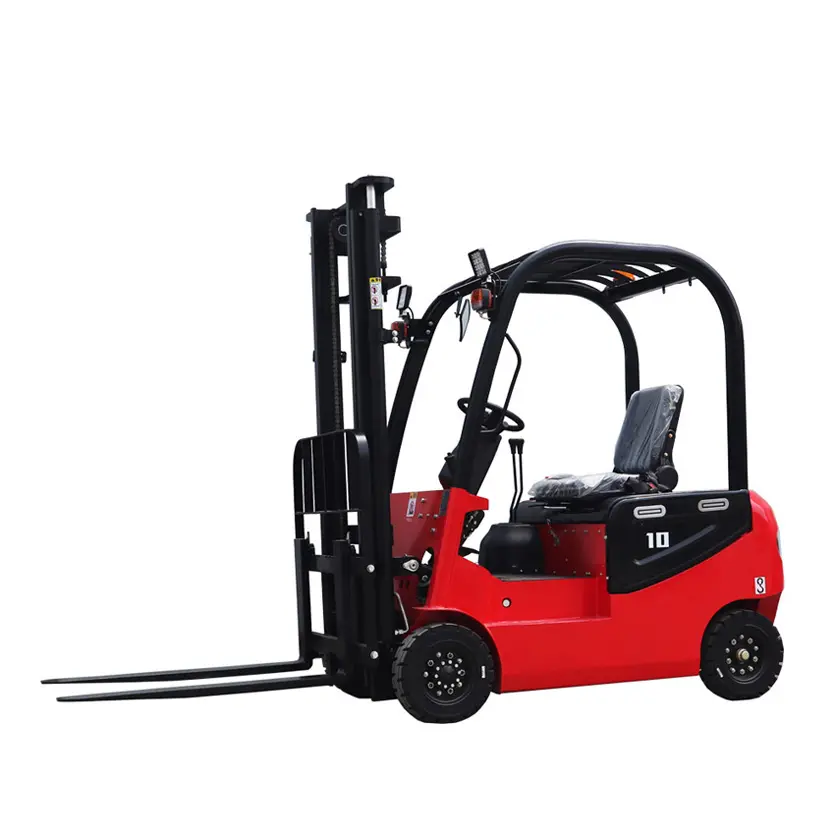

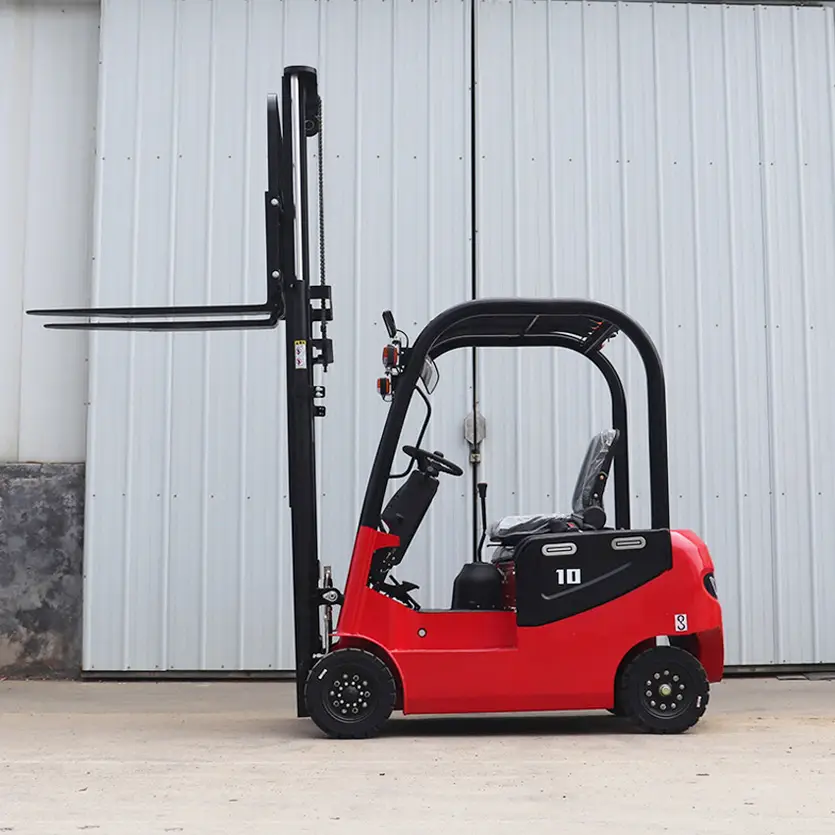

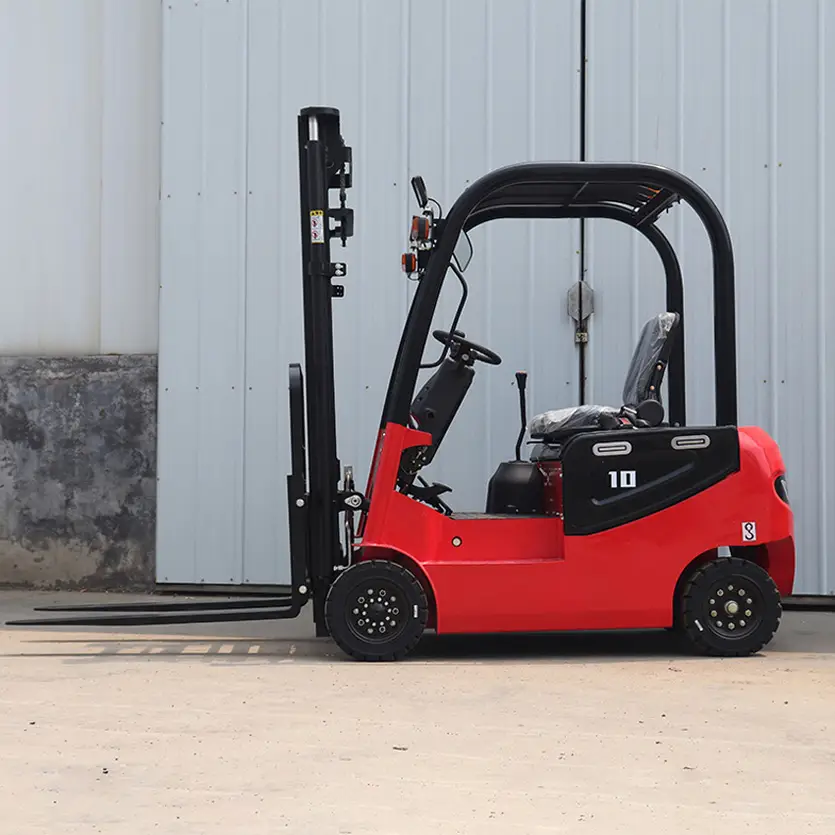

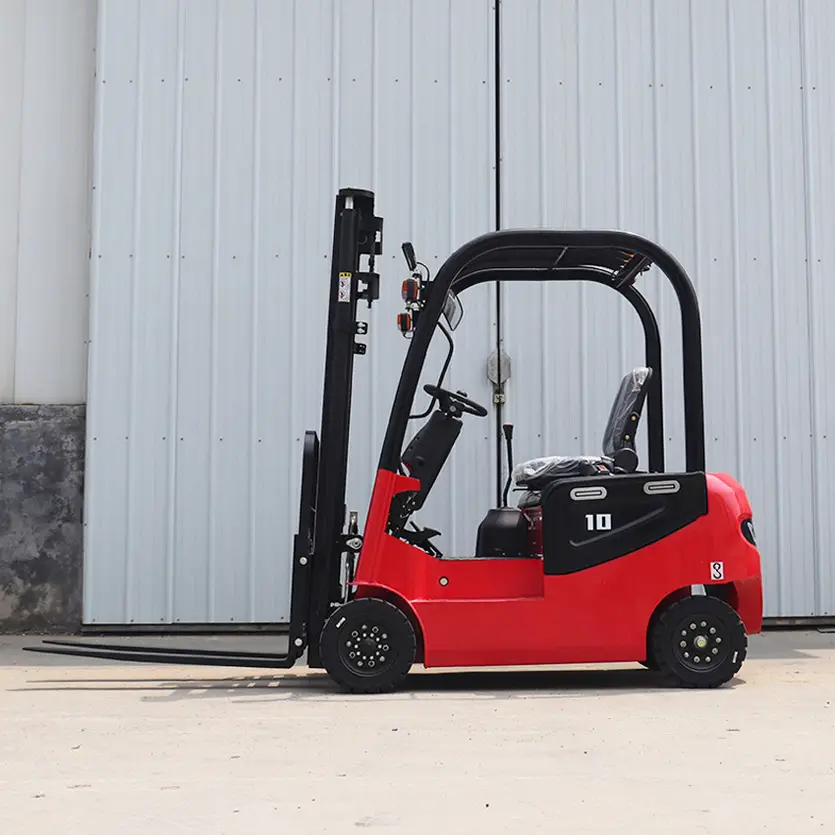

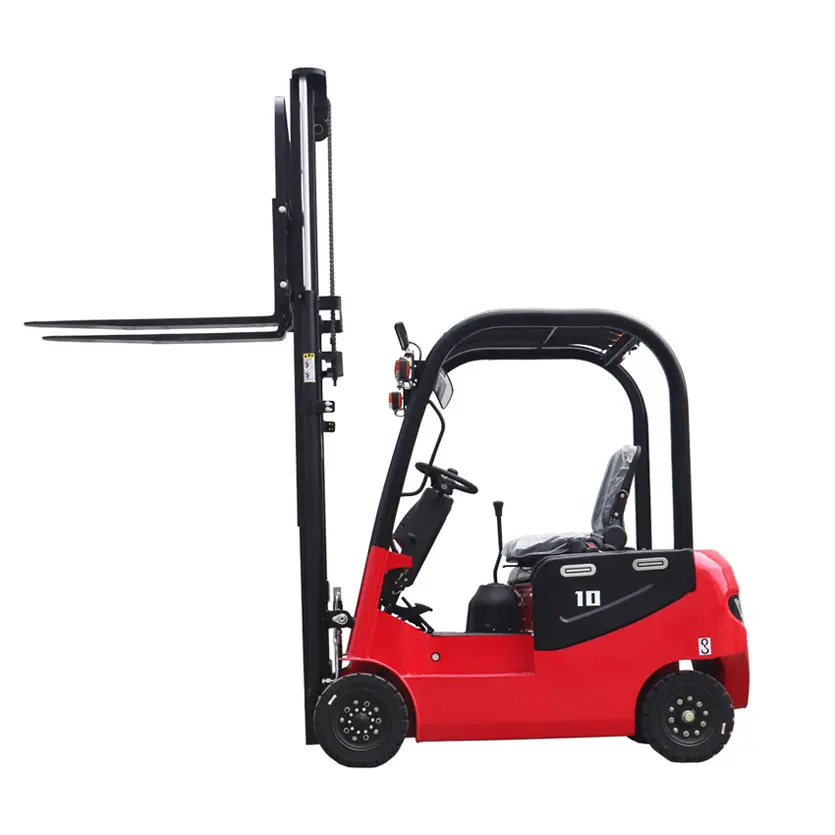

This 1ton electric forklift is a compact battery powered forklift built for daily pallet loading, stacking and goods transfer in limited‑space workshops and storage rooms. As a reliable small warehouse forklift, it adopts a 4‑wheel counterbalance structure, zero exhaust emission and low working noise, making it much more suitable for indoor operation than diesel forklifts.
Product Profile:
| Model | HS-10 |
| Driving mode | seated |
| Rated capacity Q | 1000 kg |
| Load center distance C | 500 mm |
| Power mode | lead-acid battery |
| Wheelbase L1 | 1330 mm |
| Tyre | |
| Tyre type | Solid fetus |
| Wheels number (front/rear) | 2/2 |
| Front track W3 | 910 mm |
| Rear track W2 | 865 mm |
| Tyre (front) | 15-1/2-8 |
| Performance | |
| Travel speed, laden/unladen | 10/11 km/h |
| Lifting speed, laden/unladen | 220/230 mm/s |
| Lowering speed, laden/unladen | 550 mm/s |
| Maximum negotiable gradient, laden/unladen | 15/20 % |
| Weight | |
| Service mass (with battery) | 1570 kg |
| Battery voltage / nominal capacity | 60V-120Ah |
| Battery weight | 150 kg |
| Size | |
| Front overhang L2 | 308 mm |
| Tilt of the mast, front/rear α/β | 5/10 ° |
| Free lift height H1 | 2017 mm |
| Overall maximum lift height H | 3000 mm |
| Height, mast extended H2 | 3957 mm |
| Overhead guard height H4 | 1847 mm |
| Lateral fork adjustment (outside of forks) max/min W5 | 970-200 mm |
| Fork size (L×W×T) TWL4 | 301001070 mm |
| Truck body length (fork excluded) L’ | 1980 mm |
| Truck body width W1 | 1020 mm |
| Turning radius R | 2050 mm |
| Ground clearance under mast H5 | 77 mm |
| Ground clearance at center of wheelbase (laden) H6 | 100 mm |
| Width of aisle right-angle stacking (pallet 1000×1000mm, clearance 200mm) Ast | 3400 mm |
| Width of aisle right-angle stacking (pallet 1200×1200mm, clearance 200mm) Ast | 3650 mm |
| Electrical configuration | |
| Drive motor power – 60 minutes | 5 kW, Permanent Magnet Synchronous |
| Lift motor power – 15 minutes | 4.5 kW, Magnet Synchronous |
| Drive motor controlling mode | MOSFET/PMSM |
| Lifting motor controlling mode | MOSFET/PMSM |
| Service brake / parking brake | Hydraulic / Mechanical |
