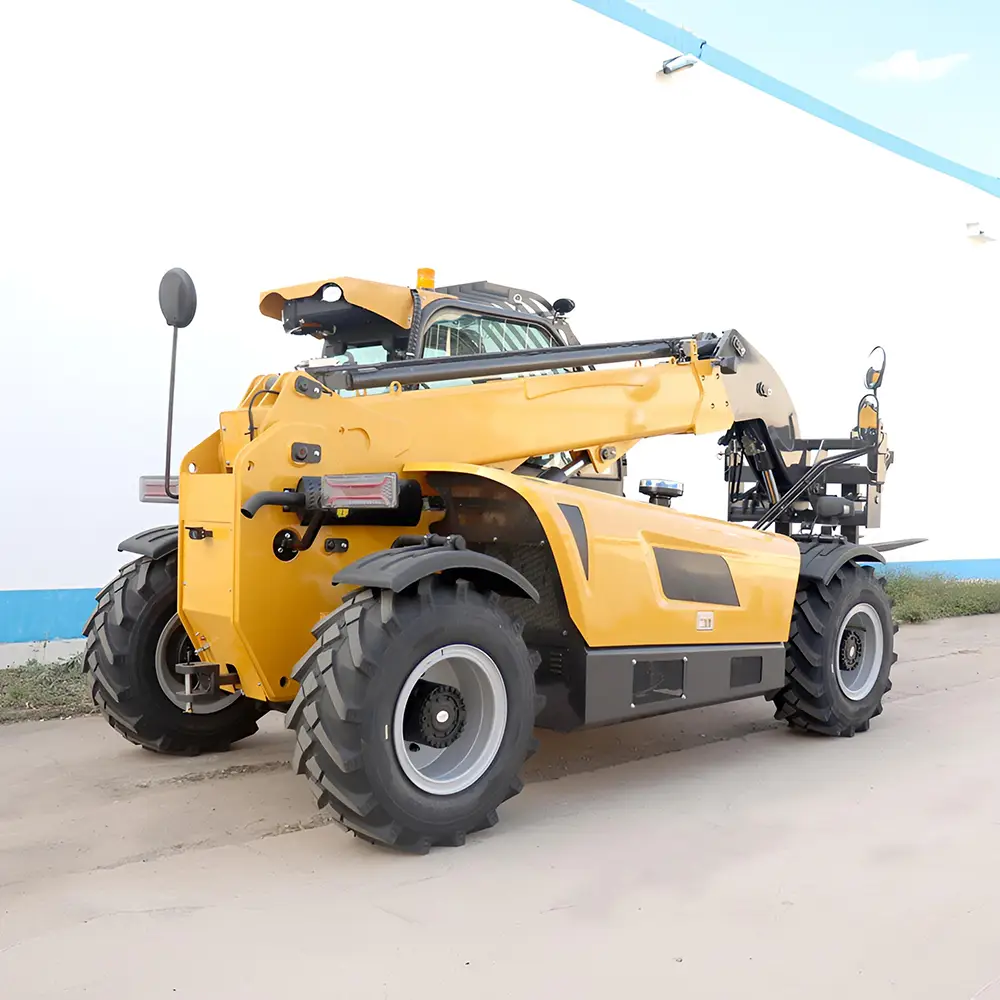

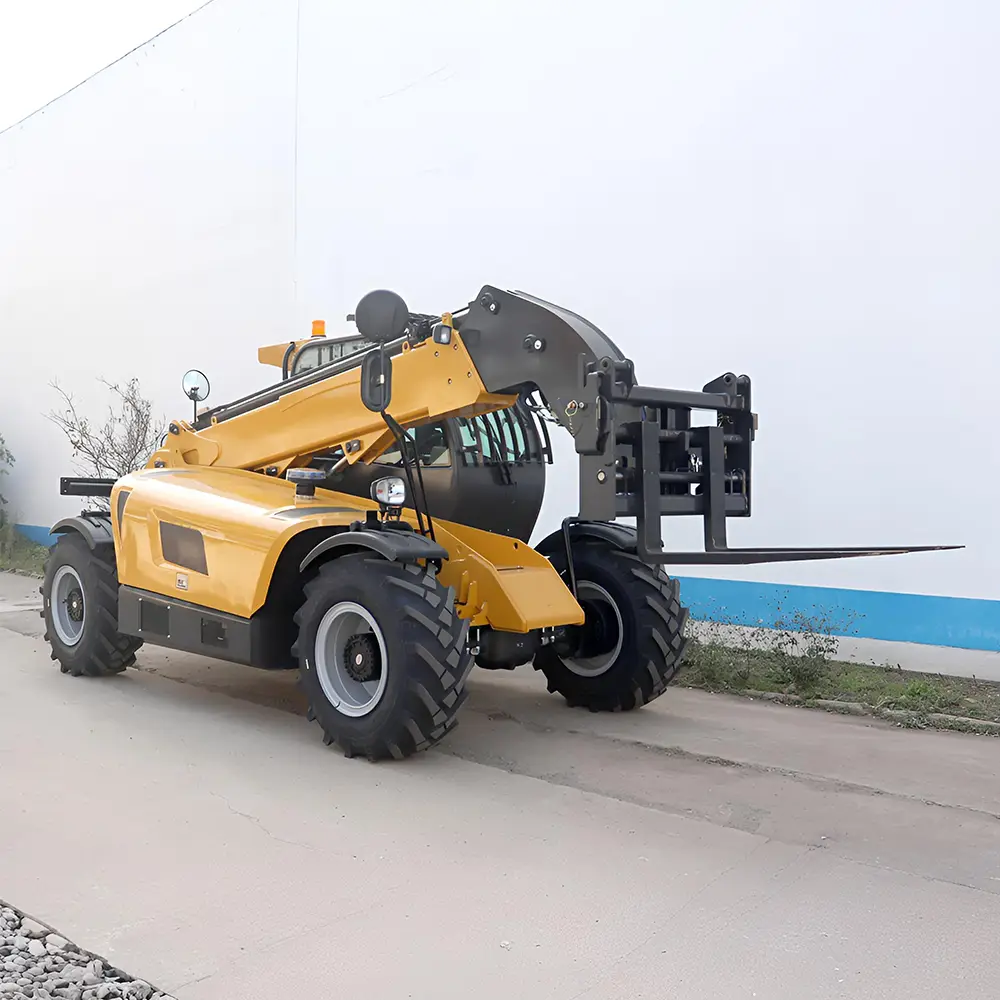

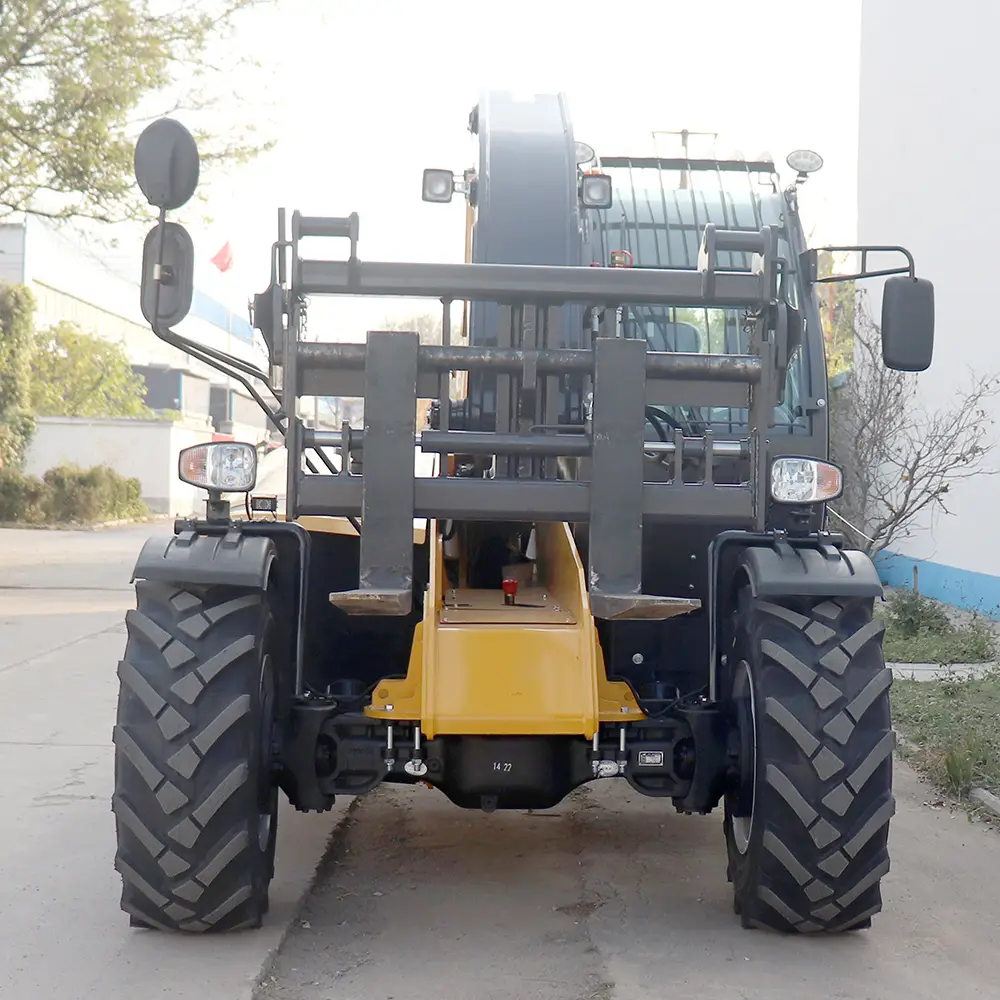

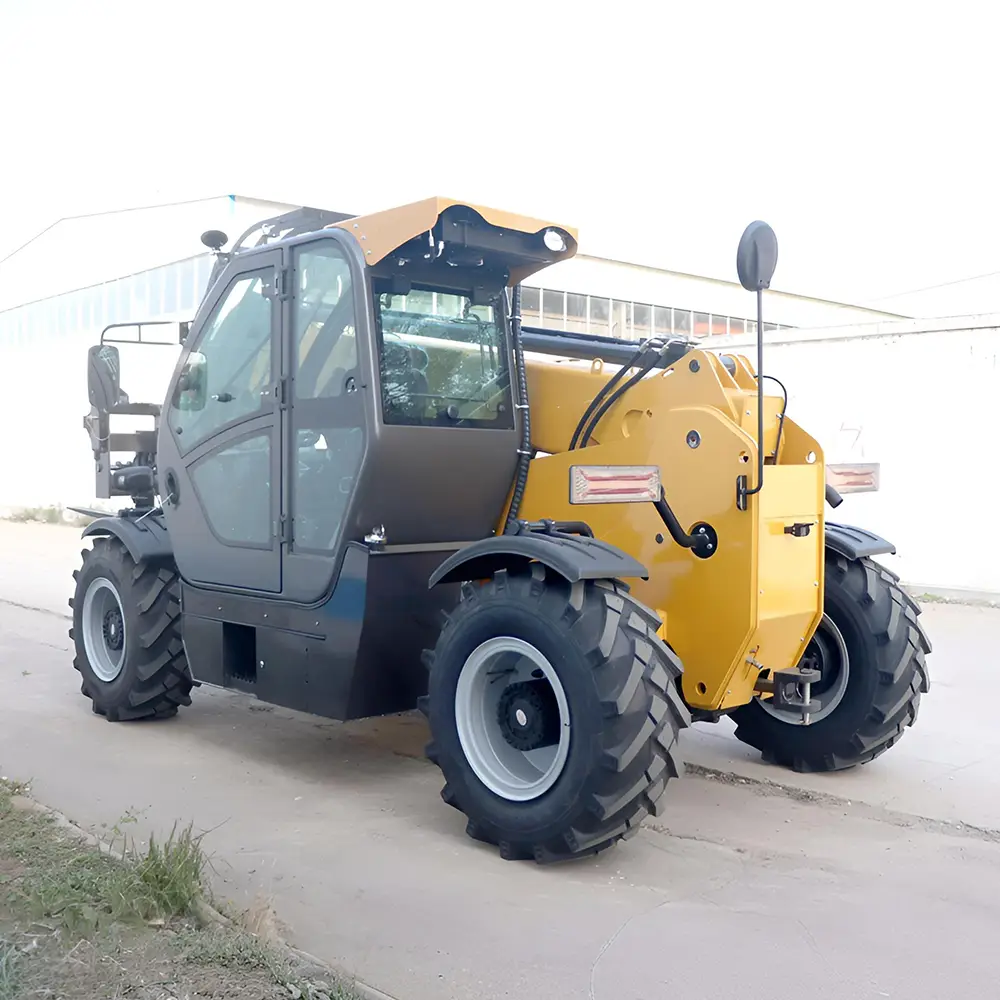

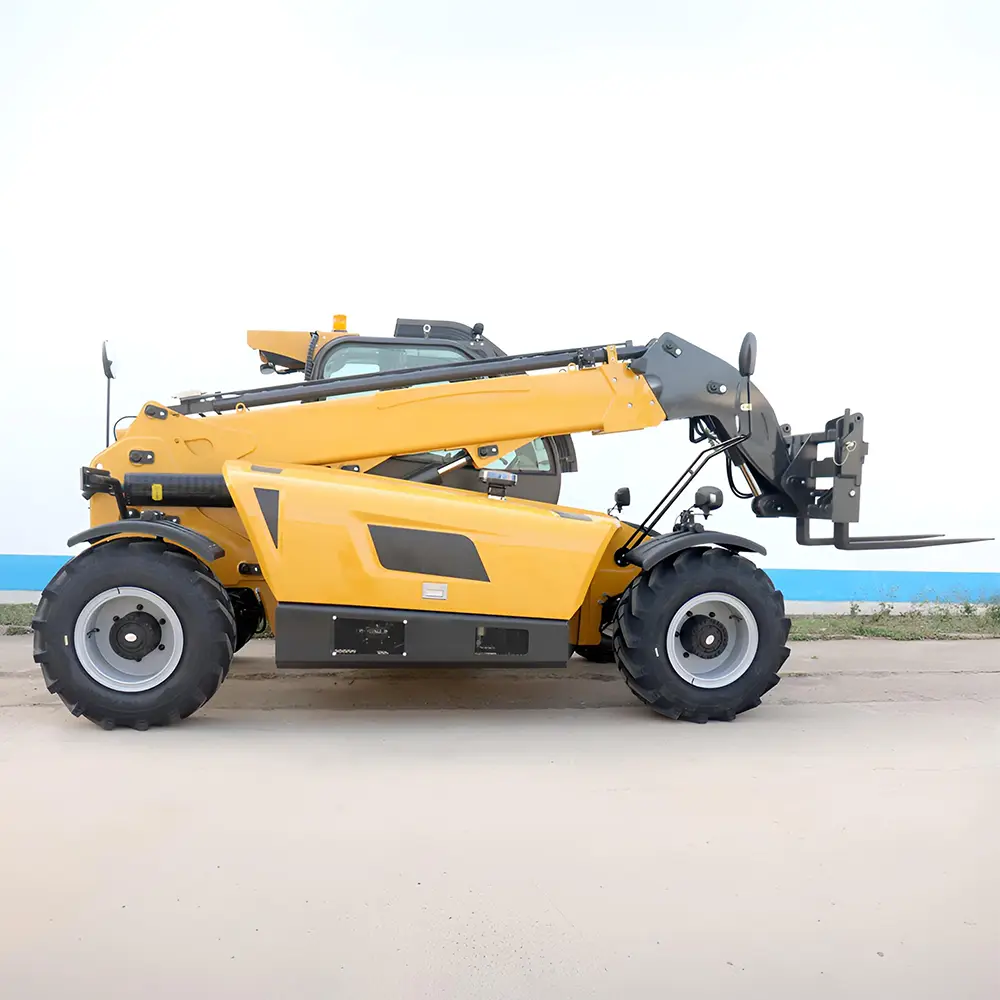

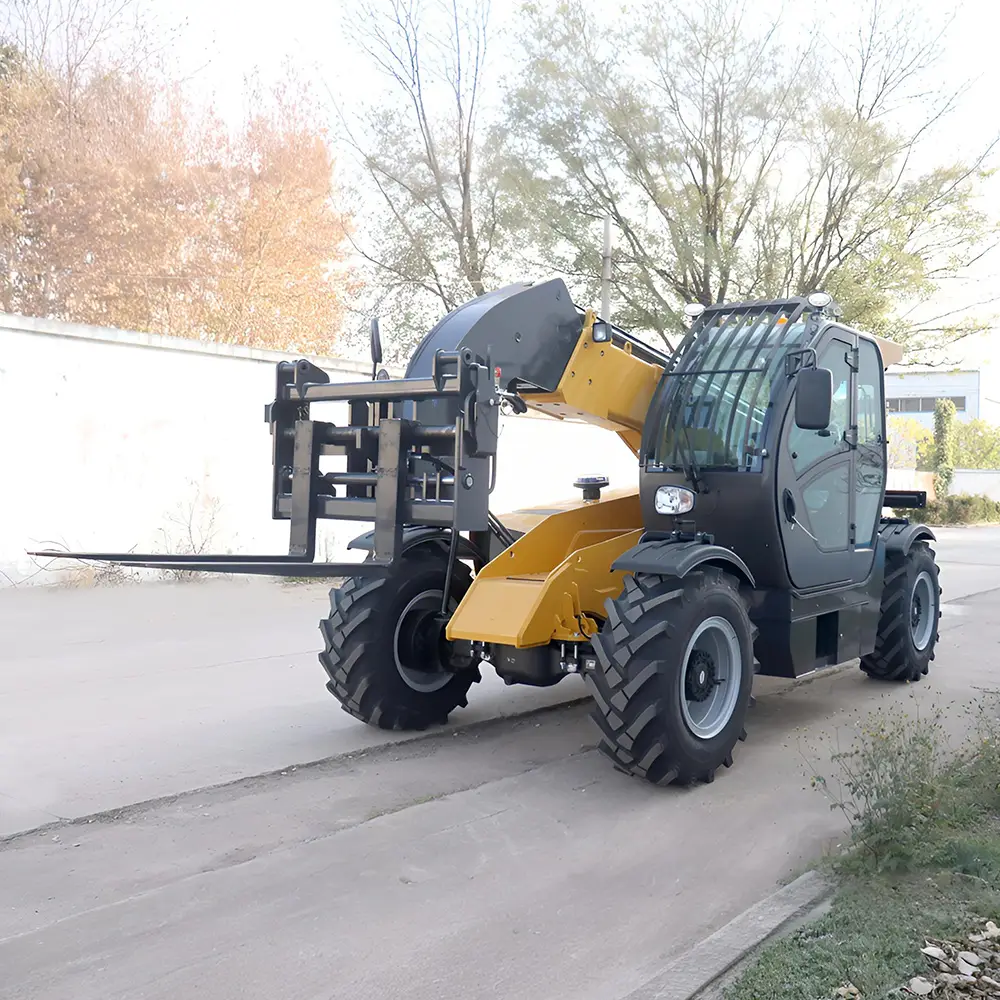

1.The boom can extend far forward, enabling direct loading and unloading without moving the vehicle.
2.Combined with its lifting capacity, it can easily lift goods to higher positions, far exceeding the capabilities of traditional forklifts.
3.With its high chassis, it is less prone to bottoming out, making it ideal for use on uneven construction sites, farms.
4.The telescopic and lifting movements are relatively smooth, resulting in less impact on the cargo.
| Model | HS-T3007 | Tilt-up angle | 12 ° |
| Max. capacity | 3000 kg | Tilt-down angle | 114 ° |
| Max. lifting height | 7.0 m | External turning radius(over tyres) | 4.25 m |
| Max. outreach | 3.2 m | Unladen weight(with fork) | 7600 kg |
| Overall length to carriage | 4.65 m | Tires type | Pneumatic |
| Length to face of forks | 5.87 m | Standard tires | 16/70 -20 |
| Min transport size | 4.35 m | Forks length/ width/ section | 1220 mm x 125 mm / 50 mm |
| Overall width | 2.2 m | Lifting | 10 s |
| Track width | 1.78 m | Lowering | 7 s |
| Overall height | 2.55 m | Extension | 12 s |
| Wheelbase | 3.15 m | Retraction | 8.6 s |
| Ground clearance | 0.35 m | Crowd | 4.8 s |
| Overall cab width | 0.84 m | Dump | 3.4 s |
