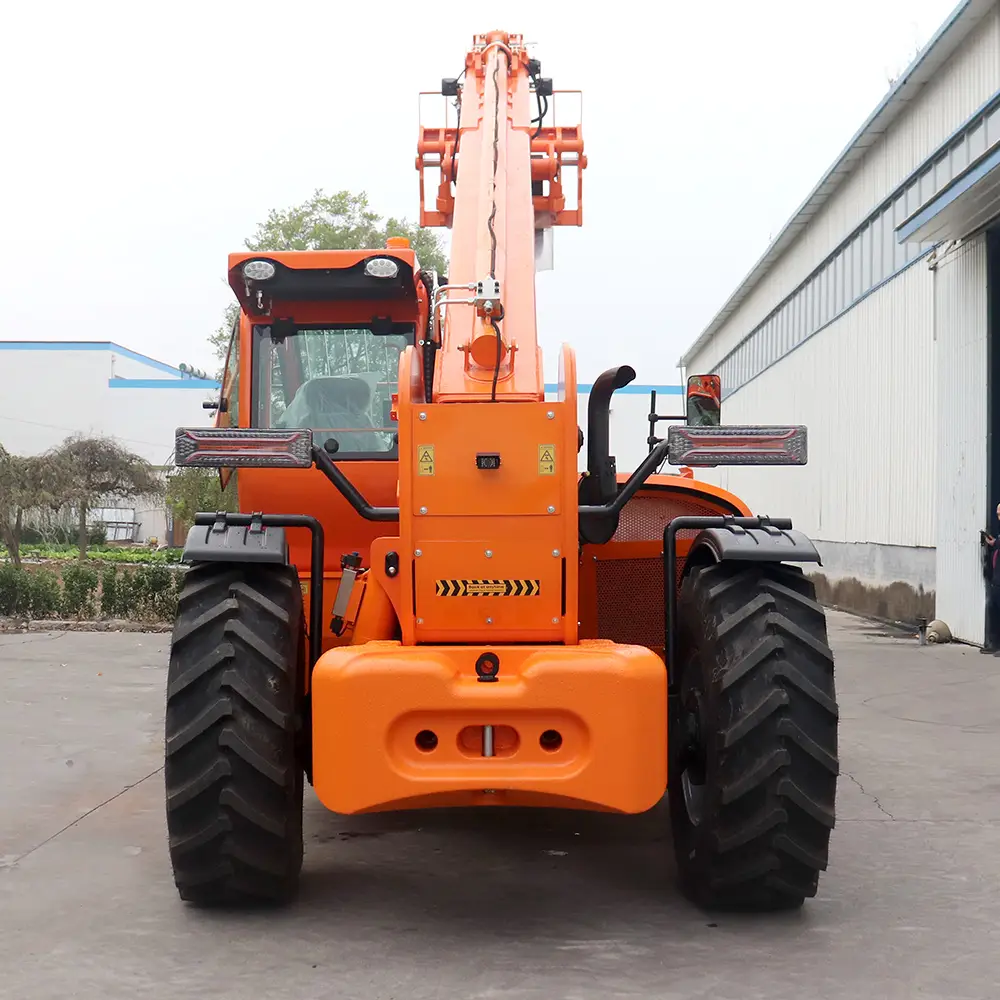

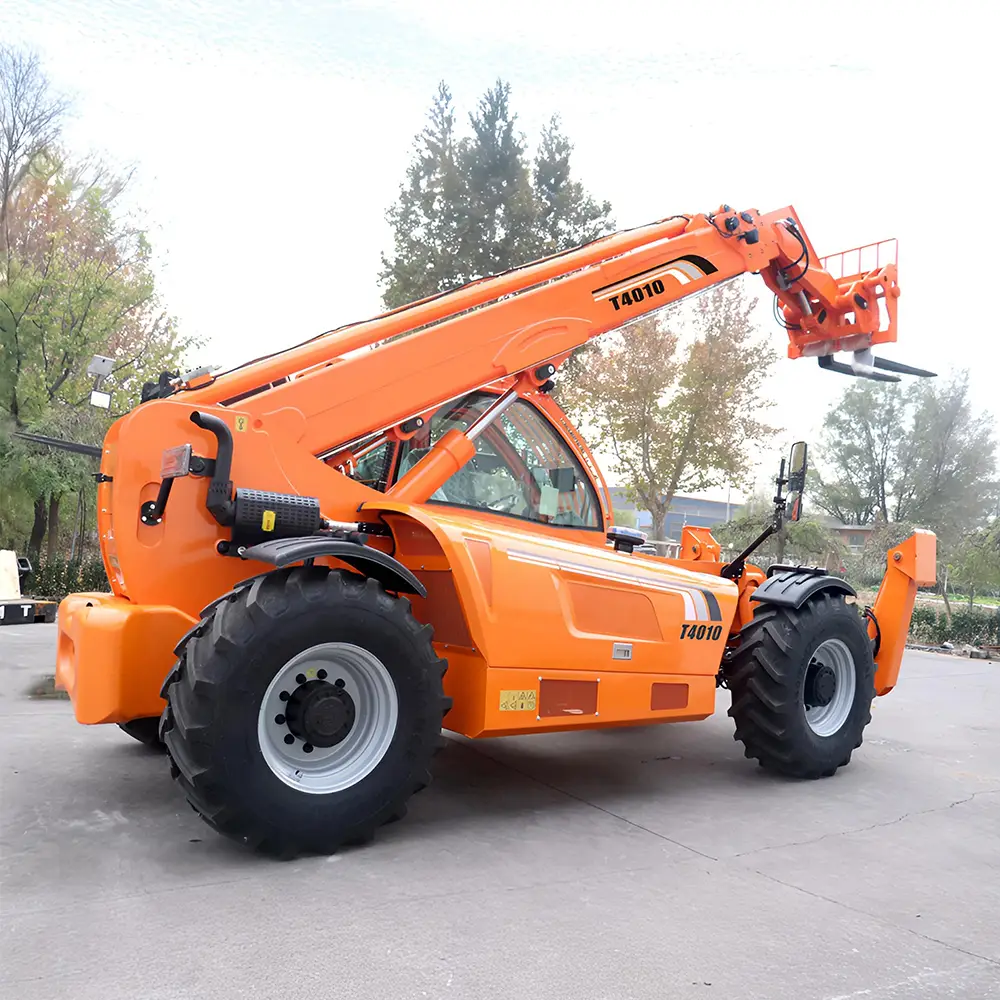

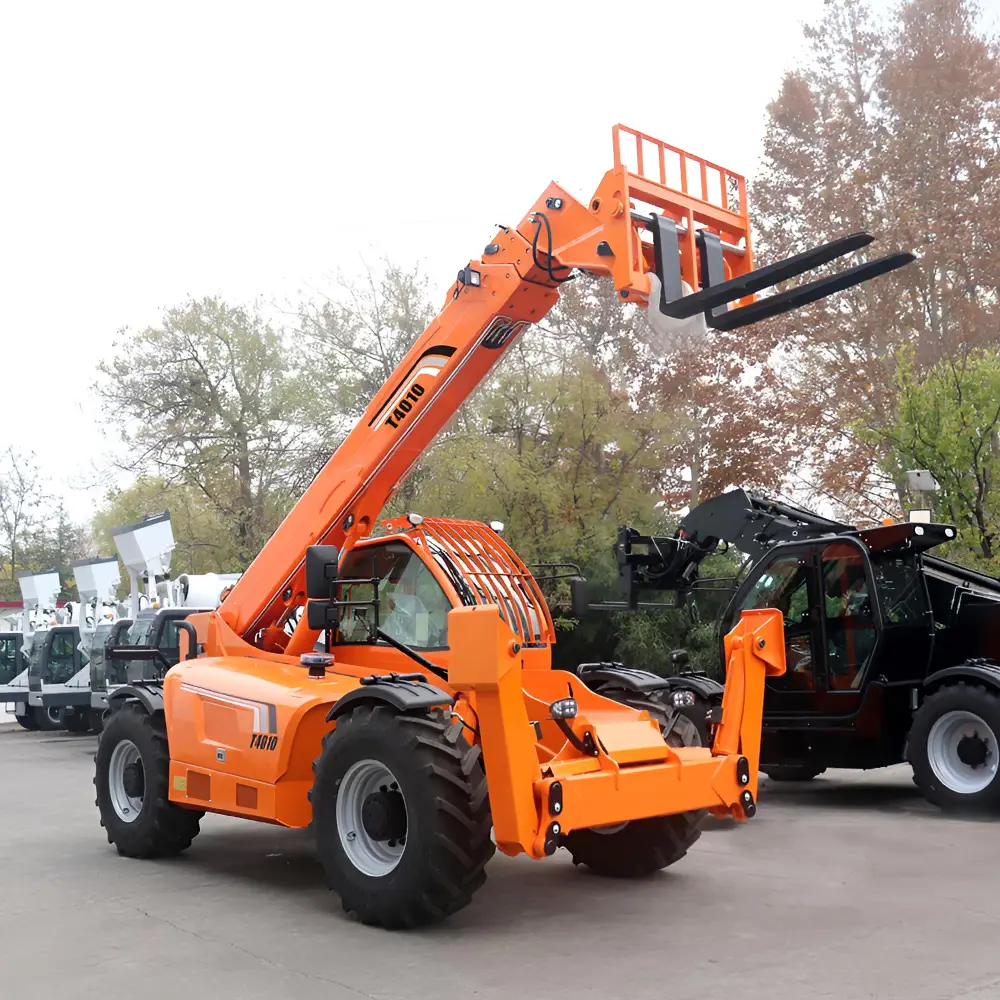

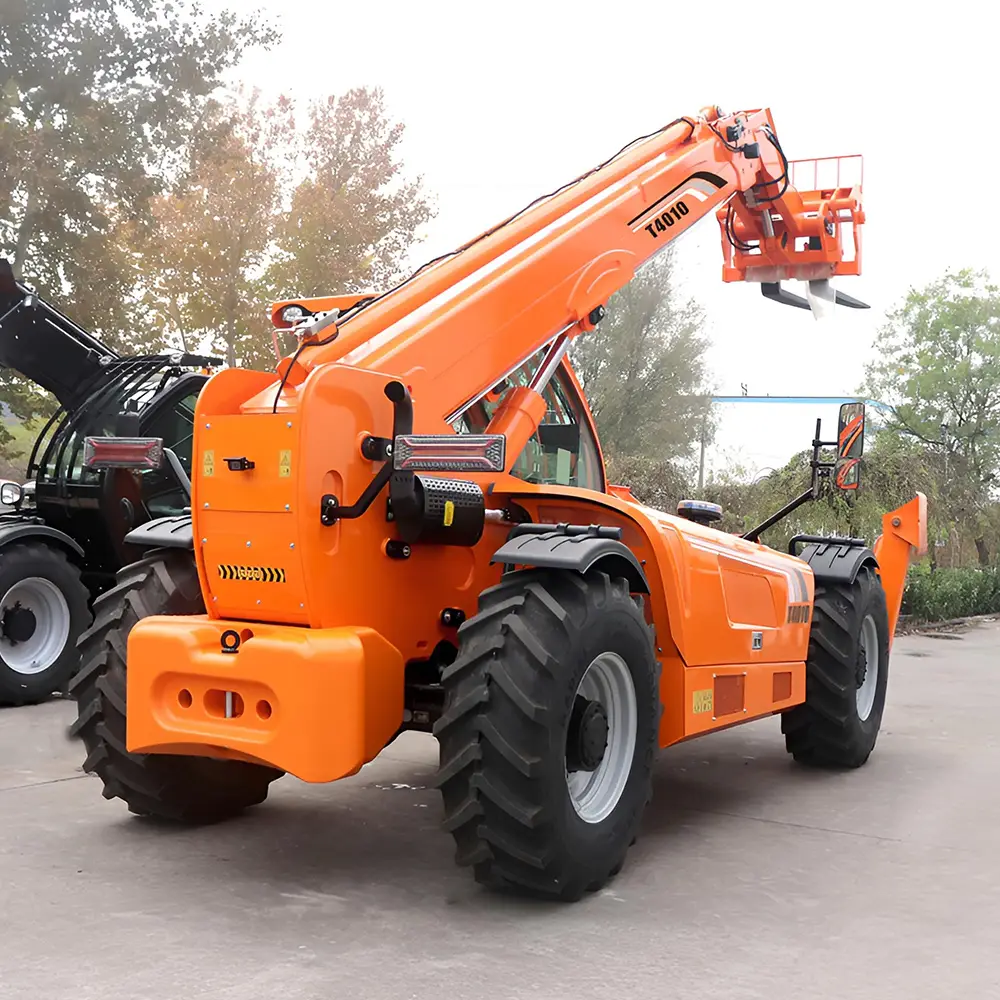

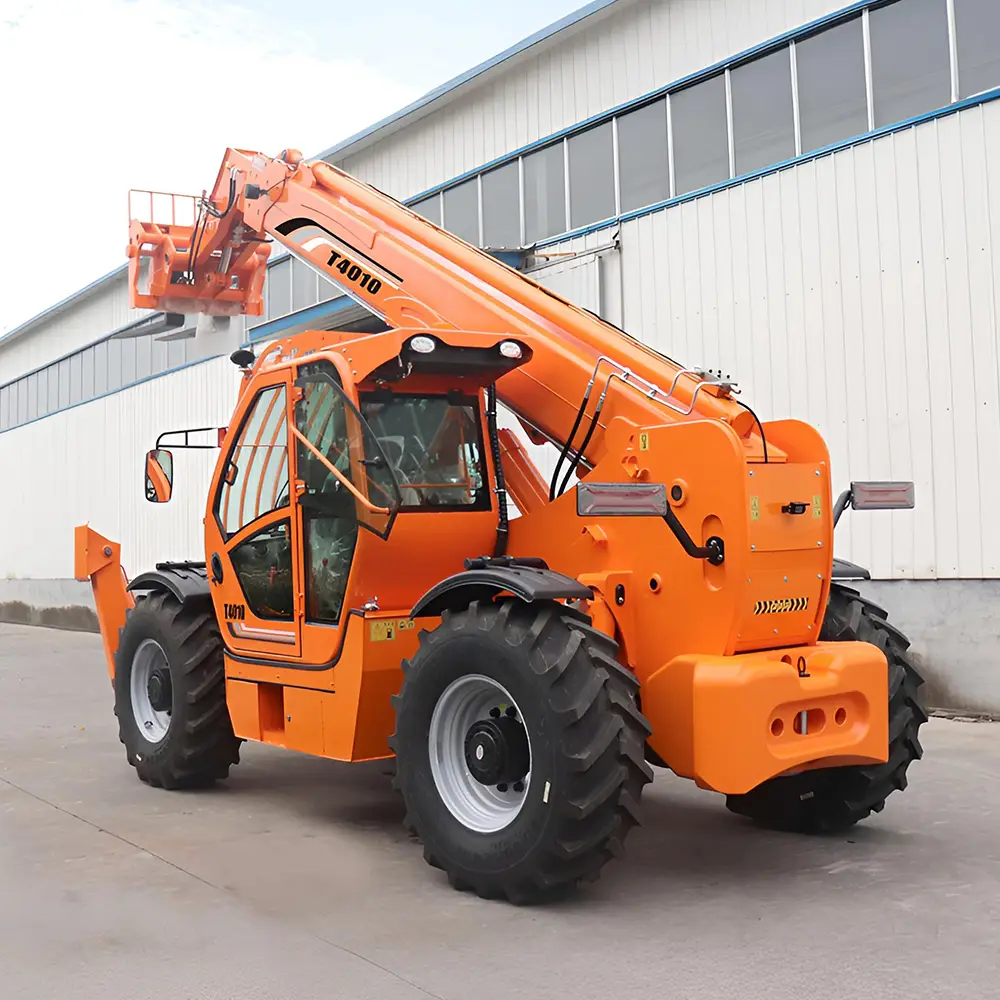

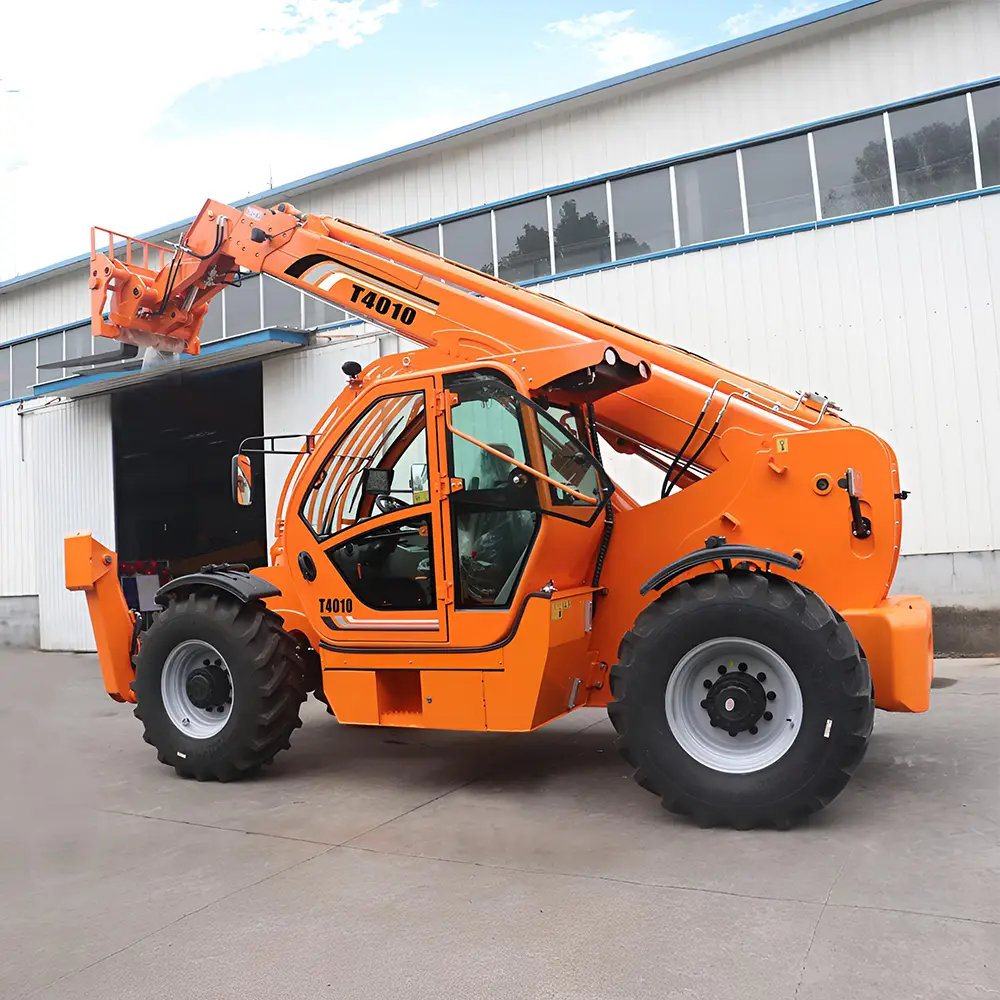

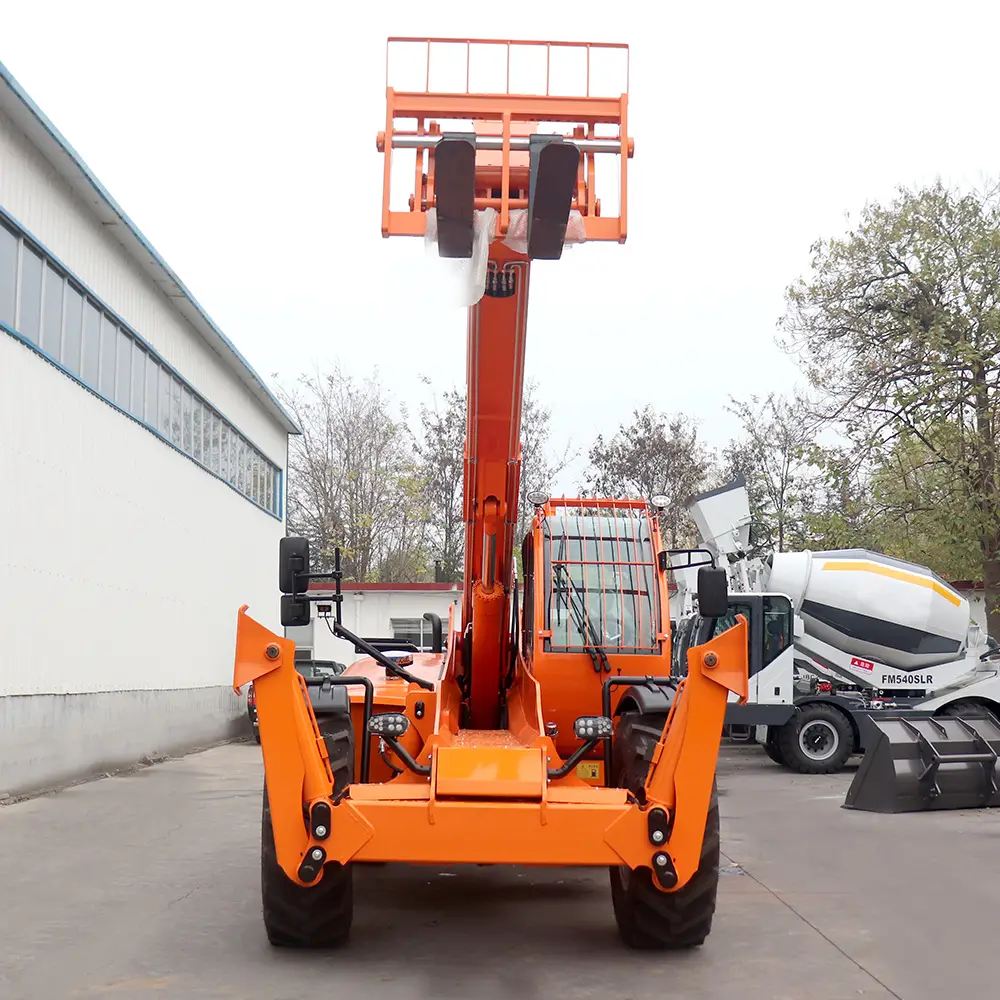

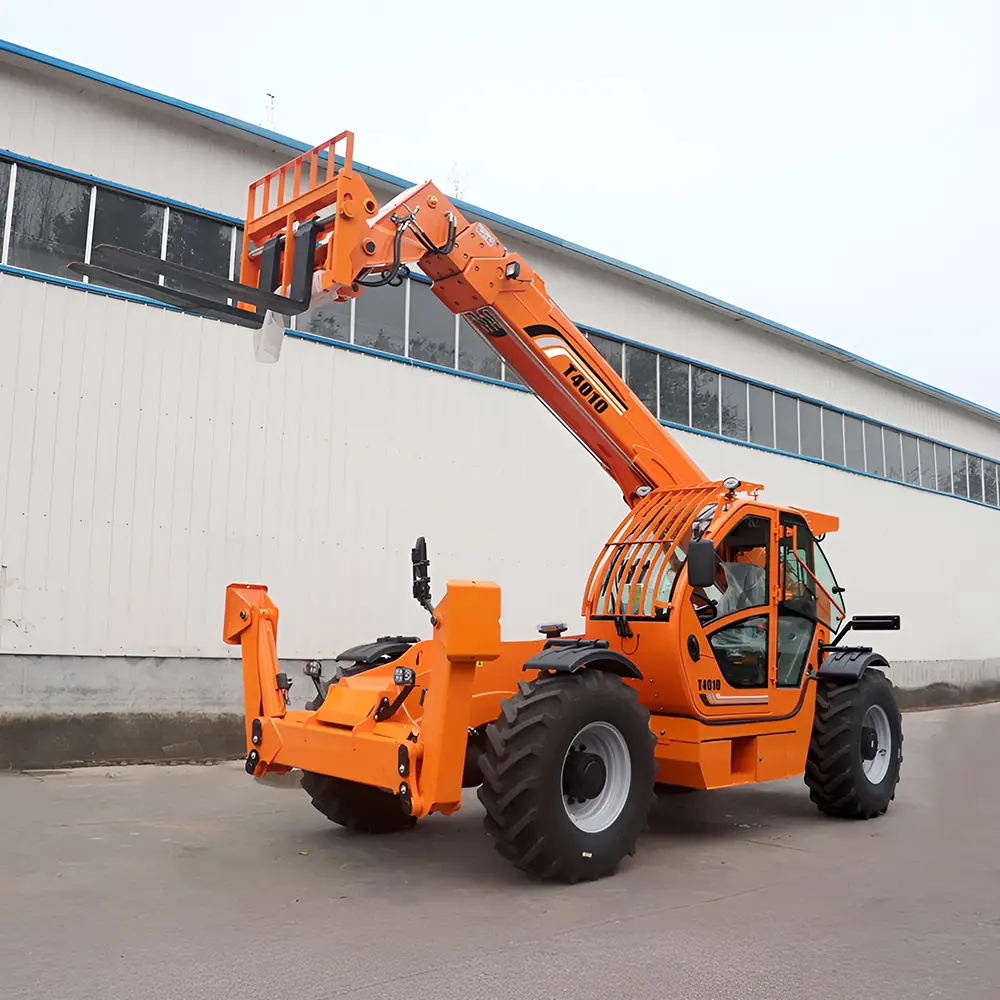

1.The telescopic forklift is four-wheel drive and equipped with large off-road tires and a robust chassis, enabling it to travel and operate stably in muddy, sandy, rugged, and other harsh road conditions.
2.Under the same weight, telescopic forklifts can often provide greater lifting capacity than traditional forklifts.The operator is positioned behind the load, with the boom in front, providing excellent visibility.
| Model | HS-4010 | Tilt-up angle | 12 ° |
| Max. capacity | 4000 kg | Tilt-down angle | 114 ° |
| Max. lifting height | 9.8 m | External turning radius(over tyres) | 4.25 m |
| Max. outreach | 4.5 m | Unladen weight(with fork) | 12800 kg |
| Overall length to carriage | 5.05 m | Tires type | Tubeless |
| Length to face of forks | 6.27 m | Standard tires | 440/80-24 |
| Min transport size | 5.05 m | Forks length/ width/ section | 1220 mm x 125 mm / 50 mm |
| Overall width | 2.2 m | Lifting | 18 s |
| Track width | 1.75m | Lowering | 144 s |
| Overall height | 2.55 m | Extension | 17.9 s |
| Wheelbase | 3.15 m | Retraction | 16.5 s |
| Ground clearance | 0.35 m | Crowd | 5.1 s |
| Overall cab width | 0.84 m | Dump | 4 s |
