1.Most telescopic forklifts are equipped with hydraulic quick-connect couplings, allowing for the replacement of dozens of different attachments in minutes. In addition to forks, they can be easily replaced with buckets, log grapples, sweepers, aerial work platforms, augers, grippers, and more.

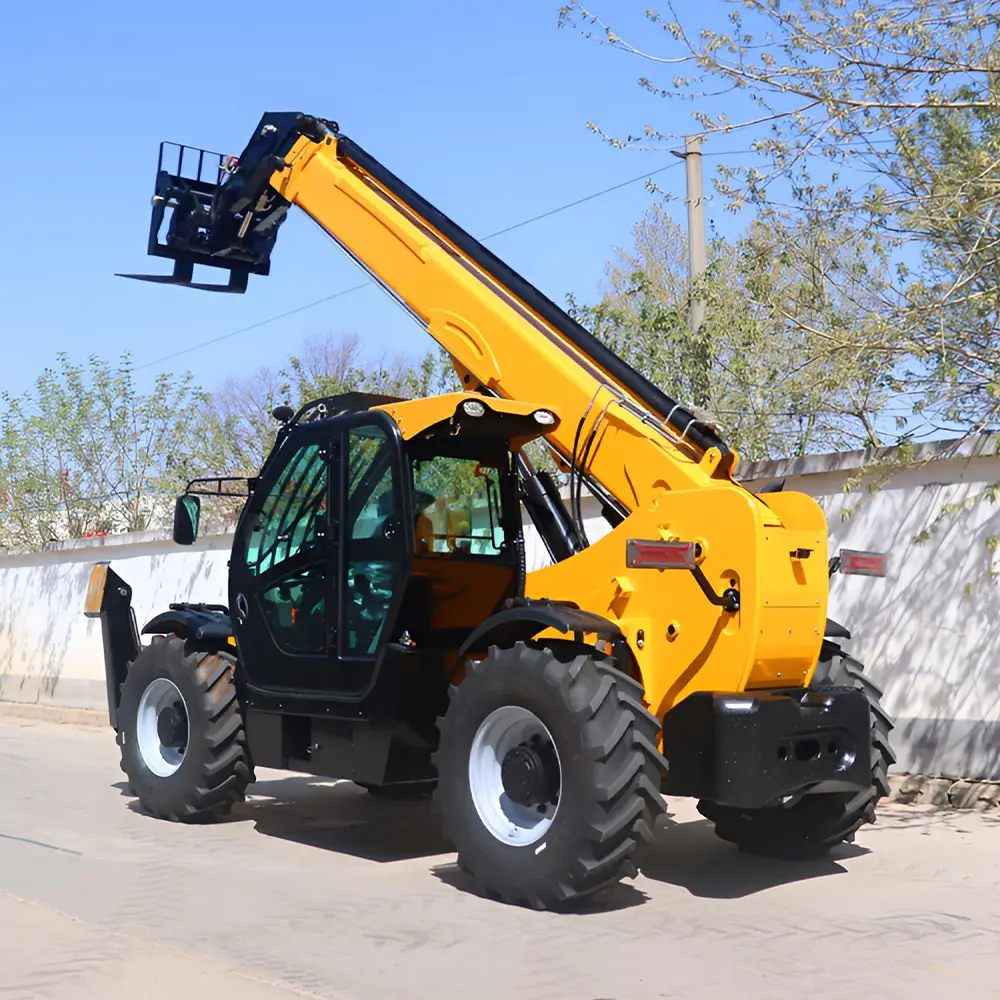

2.The boom can extend far forward, enabling direct loading and unloading without moving the vehicle. Goods can be placed directly into the truck bed or over obstacles for loading and unloading.
| Model | HS-5010 | Tilt-up angle | 12 ° |
| Max. capacity | 5000 kg | Tilt-down angle | 114 ° |
| Max. lifting height | 9.8 m | External turning radius(over tyres) | 4.1 m |
| Max. outreach | 5.0 m | Unladen weight(with fork) | 12800 kg |
| Overall length to carriage | 6.4 m | Tires type | Semi-solid |
| Length to face of forks | 7.62 m | Standard tires | 6/70 -24 |
| Min transport size | 5.6 m | Forks length/ width/ section | 1220 mm x 125 mm / 50 mm |
| Overall width | 2.35m | Lifting | 16 s |
| Track width | 1.95 m | Lowering | 12 s |
| Overall height | 2.55 m | Extension | 16 s |
| Wheelbase | 3.6 m | Retraction | 13 s |
| Ground clearance | 0.38 m | Crowd | 4s |
| Overall cab width | 0.84 m | Dump | 4s |
