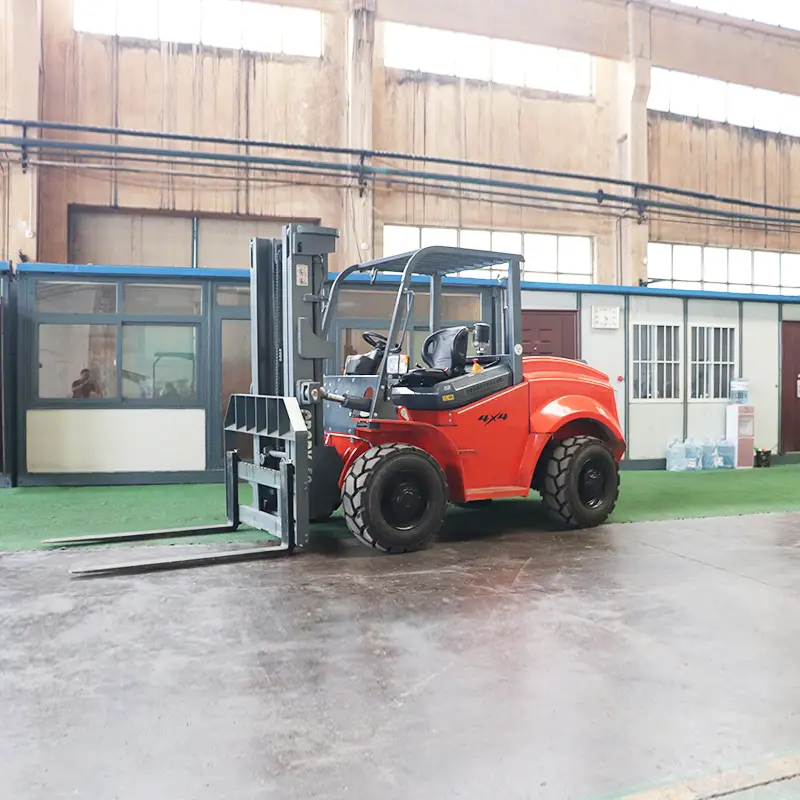

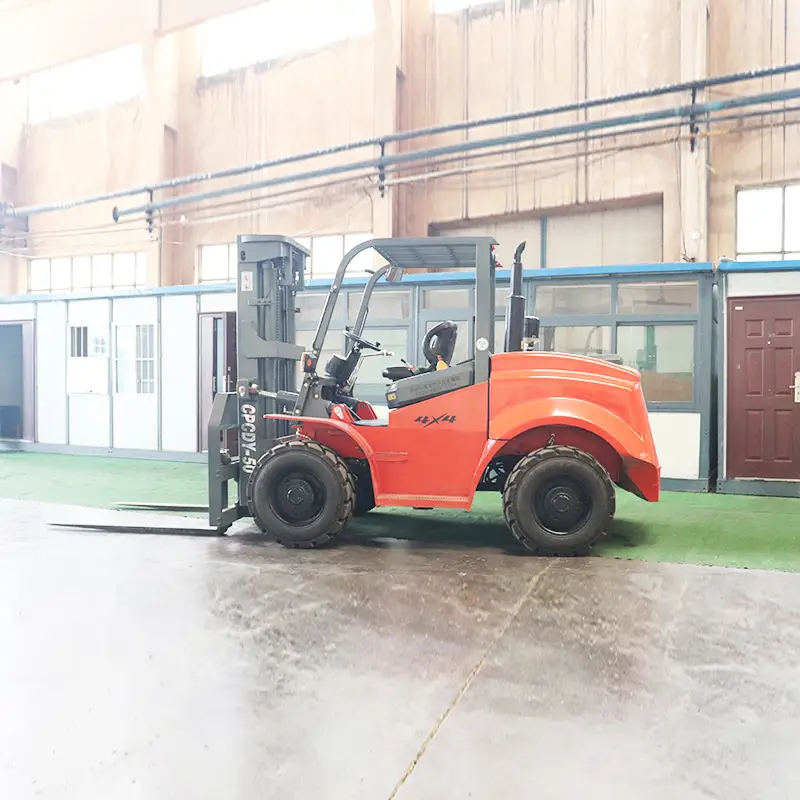

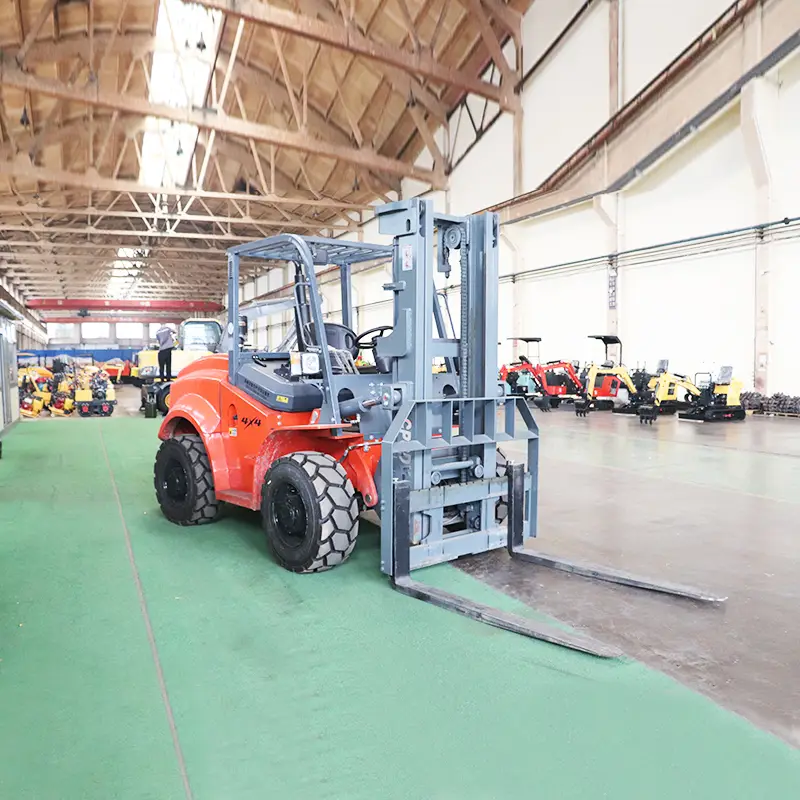

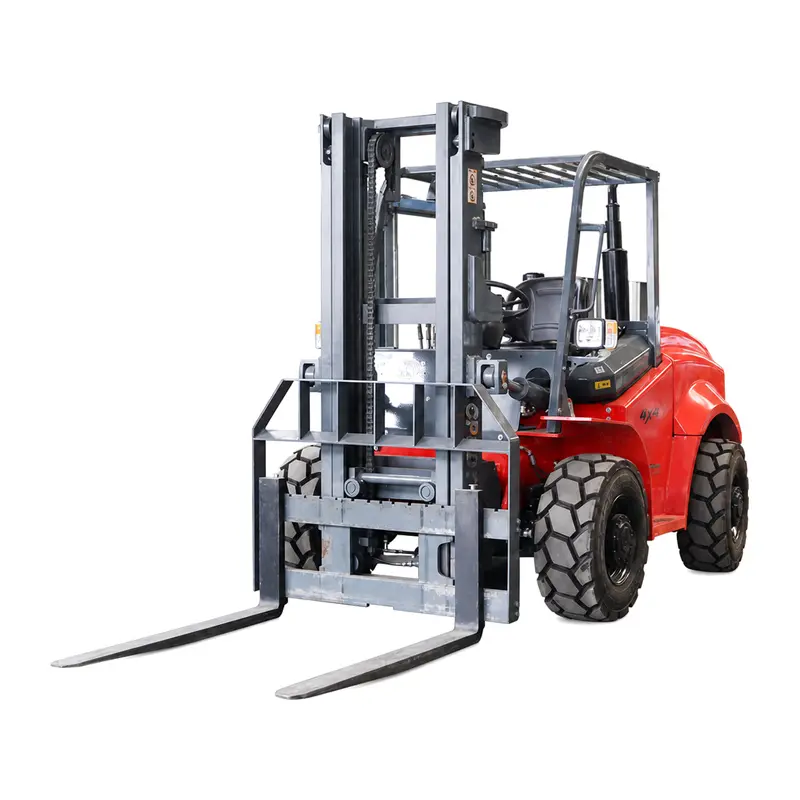

T50A Integrated All Terrain Forklift

Model number : T50(Integrated)
Rated lifting weight: 5000kg	Engine model: Yunnei4102
Rated lifting height: 3000-6000mm	Drive mode: four-wheel drive
Load center distance: 600mm	Axle : 280 High and low speed torque converter
Minimum turning radius: 3200mm	Tire type : 12-16.5 Special enhanced
Maximum climbing Angle:38°	Wheelbase:1890mm
Minimum ground clearance: 350mm	Frame steel width: 180mm (plus heavy duty)
Front/back Angle of frame :10.0/6.0	Fork length:1520mm(optional)
Maximum operating speed :35km/h	Weight: 6500kg
Maximum hook traction: 30.0KN	Machine size:3500/1892/2300mm
Axle type: Brand wheel cast steel steering axle (rear wheel steering/four-wheel steering)

Immediate consultation

Product Application:

1. Electrophoretic spray paint, the paint surface is smooth and not easy to rust.
2. Full hydraulic control, stable and simple operation.
3. Integrated monoblock frame design, high structural rigidity and strong impact resistance.
4. Hydraulic power steering, steady driving and easy manipulation.
5. Thickened heavy-duty mast, great load capacity and smooth lifting.
6. Deep pattern off-road tires, excellent grip for complex ground conditions.
7. LED working lamp, high brightness for night work and energy saving.
8. Reasonable layout of engine compartment, easy access for inspection and servicing.
