Product Details:

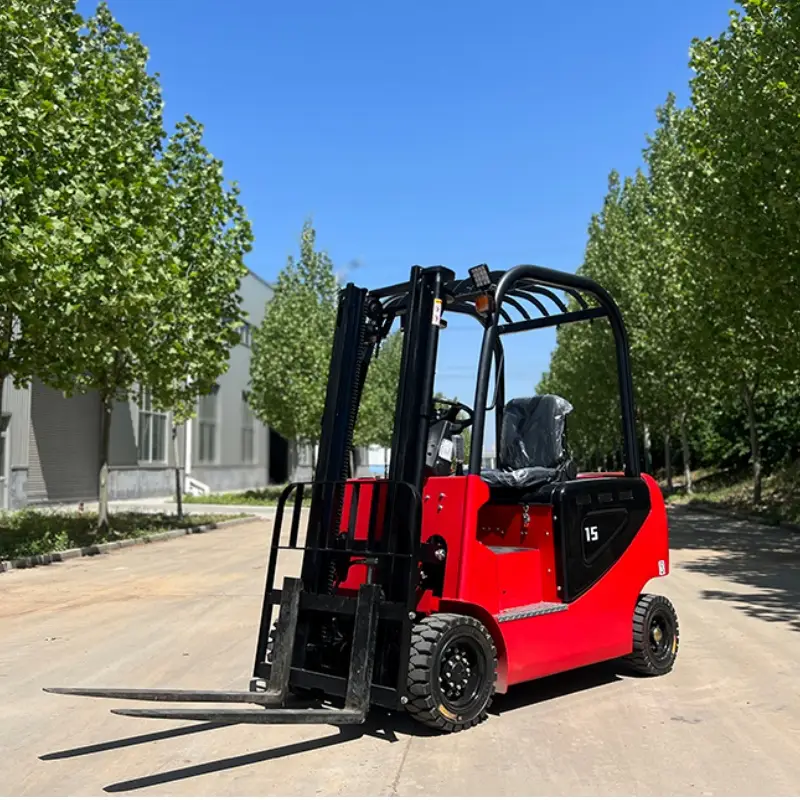

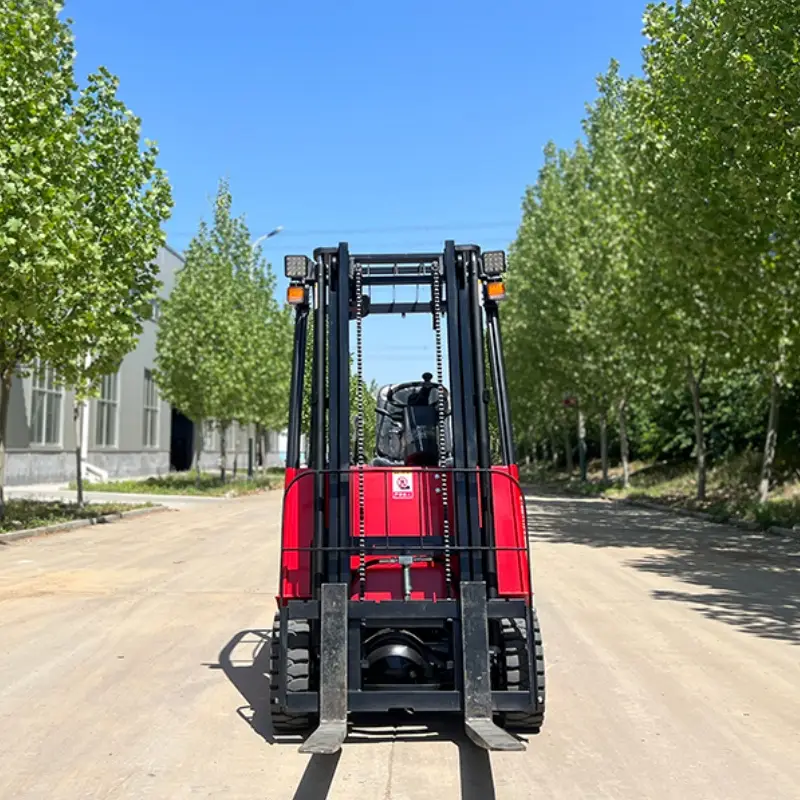

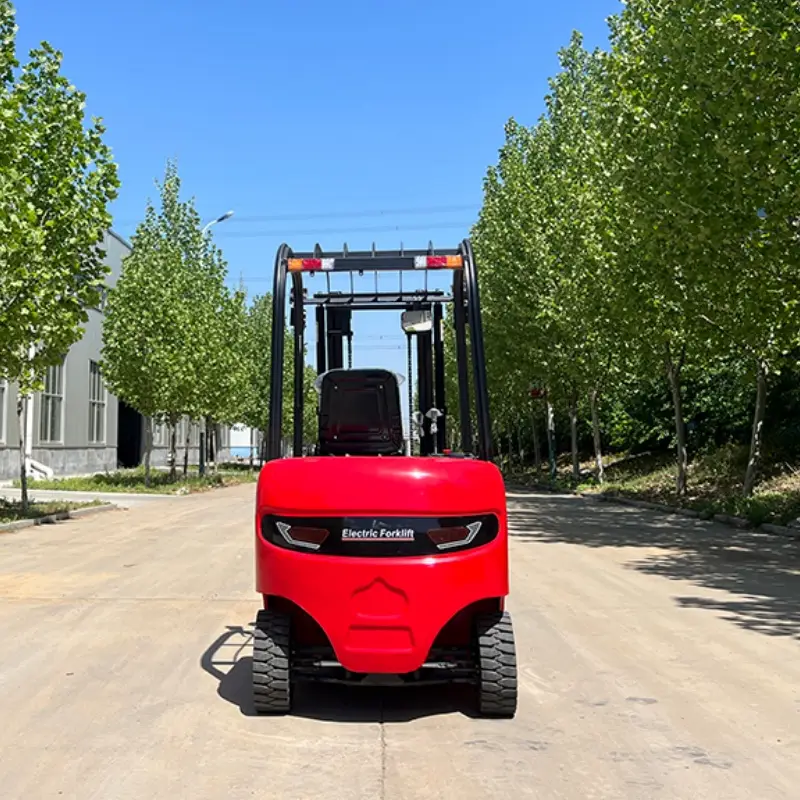

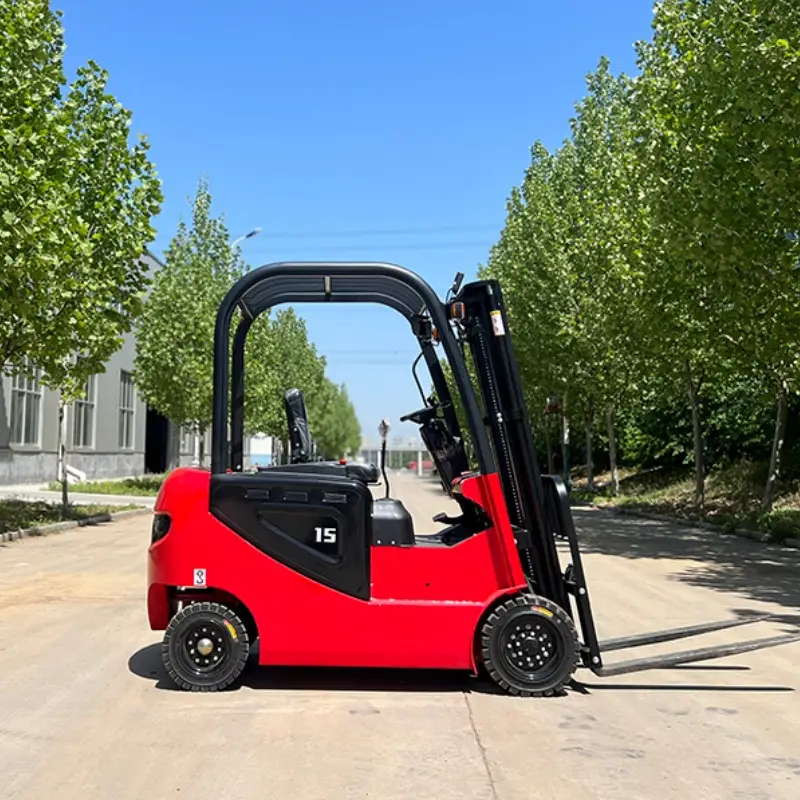

Our 1.5 ton electric forklift is a compact, energy-saving counterbalance material handling solution tailored for light to medium-duty indoor operations. Unlike bulky industrial forklifts, this compact model features a flexible body structure, perfectly adapting to narrow working spaces while maintaining reliable lifting capacity and operational stability. Built with high-grade industrial components and mature electric drive technology, the 1.5 ton counterbalance electric forklift ensures long-duration continuous work, low failure rates, and minimal daily maintenance costs, becoming the most popular small electric forklift for small and medium-sized logistics scenarios worldwide.
Product Profile:
| Item | Specification |
|---|---|
| Characteristics | |
| Model | CPD15 |
| Driving mode | seated |
| Rated capacity | 1500 kg |
| Load center distance | 500 mm |
| Power mode | lead-acid battery |
| Wheelbase | 1550 mm |
| Performance | |
| Travel speed, laden/unladen | 9 / 10 km/h |
| Lifting speed, laden/unladen | 200 / 200 mm/s |
| Lowering speed, laden/unladen | 450 mm/s |
| Maximum negotiable gradient, laden/unladen | 15 / 20 % |
| Weight | |
| Service mass (with battery) | 2100 kg |
| Axle load: unloaded, front/rear | — |
| Axle load: loaded, front/rear | — |
| Battery voltage / nominal capacity | 60V / 160Ah |
| Battery weight | 207 kg |
| Electrical configuration | |
| Drive motor power-60 minutes | 5 kW, Permanent Magnet Synchronous |
| Lift motor power-15 minutes | 4.5 kW |
| Drive motor controlling mode | Magnet Synchronous, MOSFET/PMSM |
| Lifting motor controlling mode | MOSFET/PMSM |
| Service brake / parking brake | Hydraulic / Mechanical |
| Tyre | |
| Tyre type | Solid fetus (Solid tire) |
| Wheels number (front/rear) | 2 / 2 |
| Front track | W3: 945 mm |
| Rear track | W2: 880 mm |
| Tyre (front) | 18*7-10 |
| Tyre (rear) | 16*6-8 |
| Size | |
| Front overhang | L2: 325 mm |
| Tilt of the mast, front/rear | α/β: 5 / 10 ° |
| Height, mast retracted | H1: 2030 mm |
| Free lift height | / |
| Overall maximum lift height | H: 3000 mm |
| Height, mast extended | H2: 4055 mm |
| Overhead guard height | H4: 2110 mm |
| Lateral Fork Adjustment (Outside of Forks) Max/Min | 970 / 200 mm |
| Fork size (L×W×T) | 351001070 mm |
| Truck body length (fork excluded) | L’: 2230 mm |
| Truck body width | W1: 1100 mm |
| Turning radius | R: 2280 mm |
| Ground clearance under mast | H5: 88 mm |
| Ground clearance at center of wheelbase(laden) | H6: 110 mm |
| Width of aisle right-angle stacking (pallet1000×1000mm clearance 200mm) | Ast: 3750 mm |
| Width of aisle right-angle stacking (pallet1200×1200mm clearance 200mm) | Ast: 3950 mm |
