Product Details:

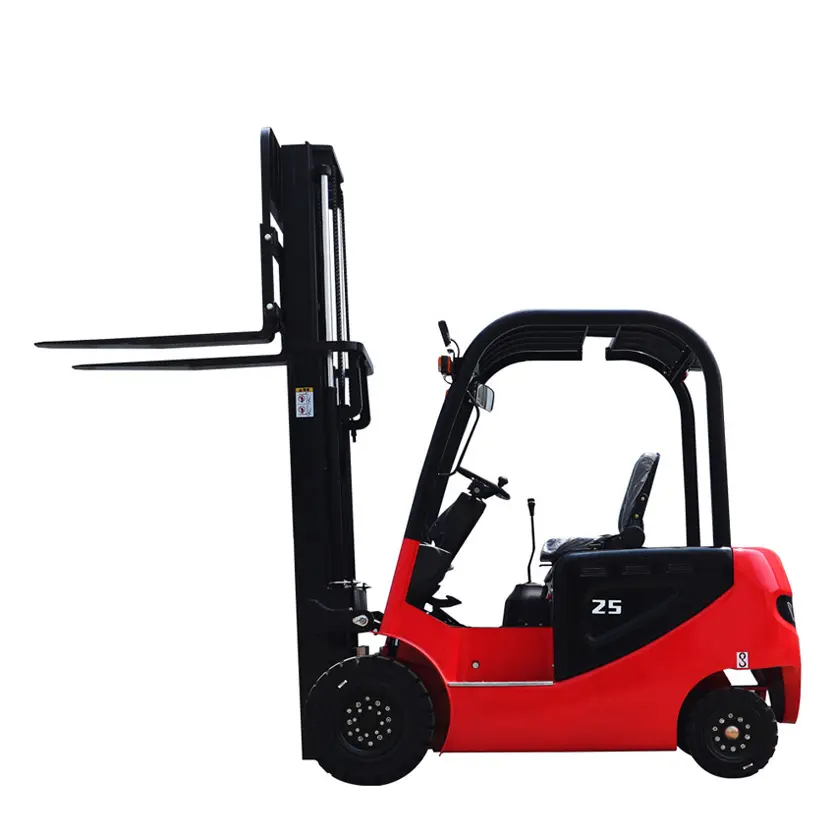

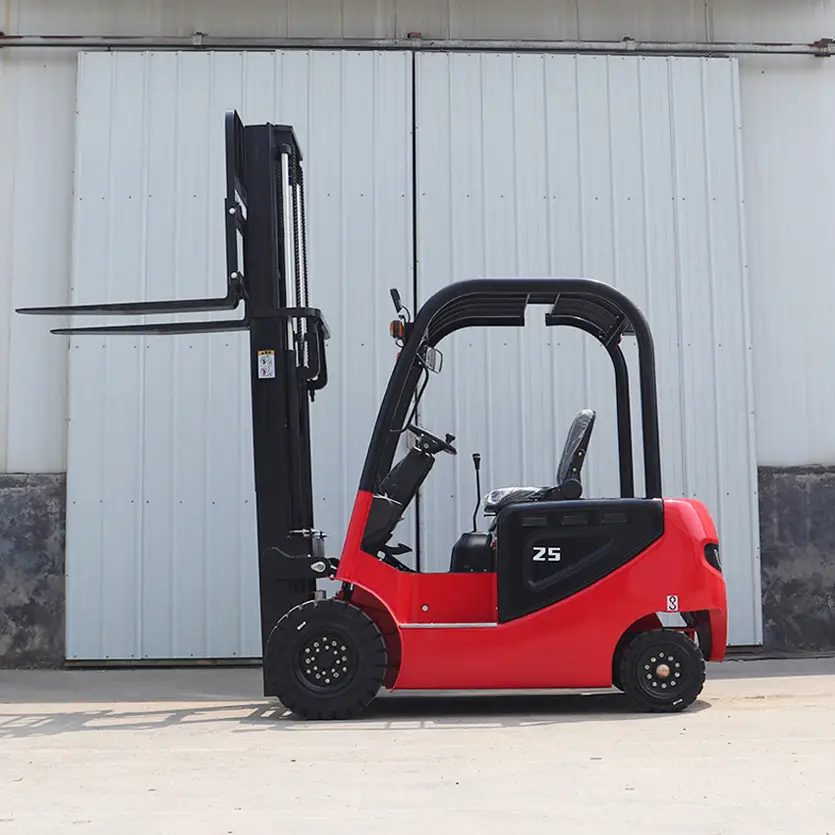

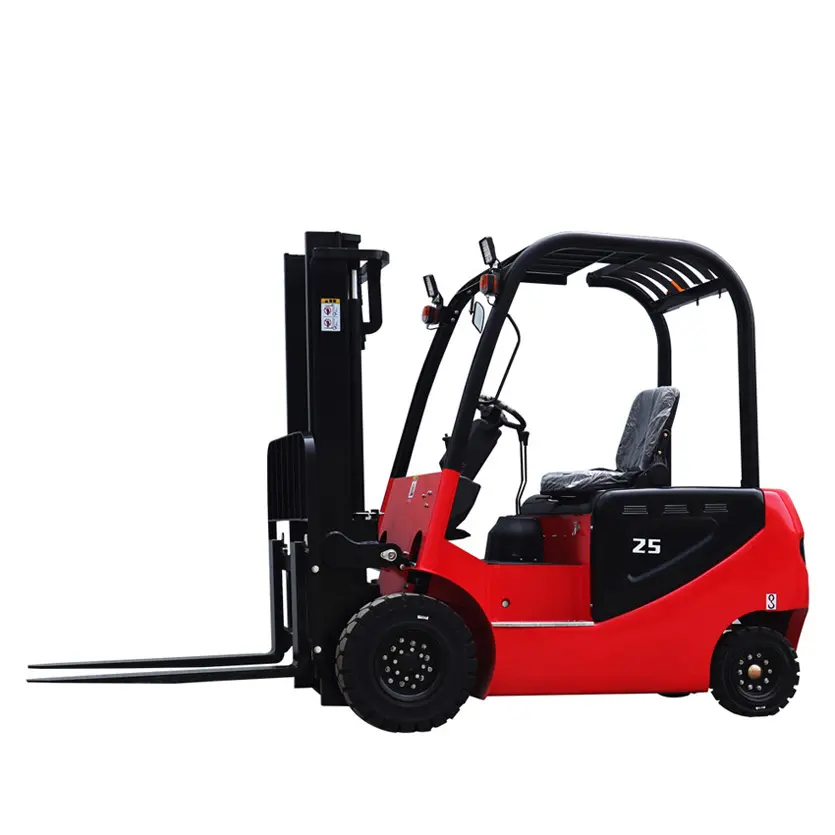

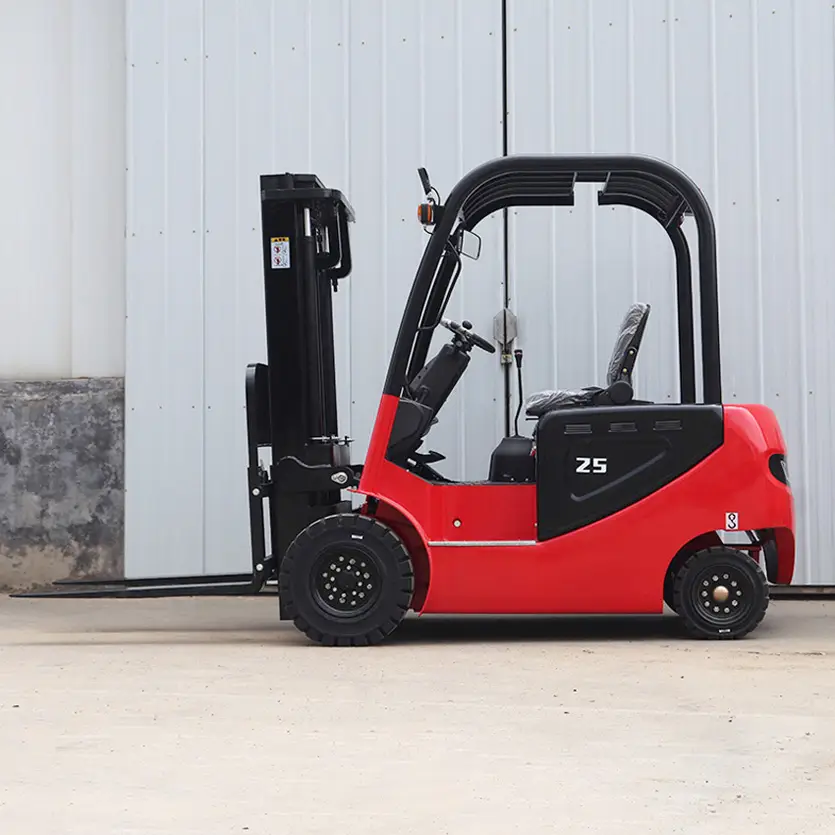

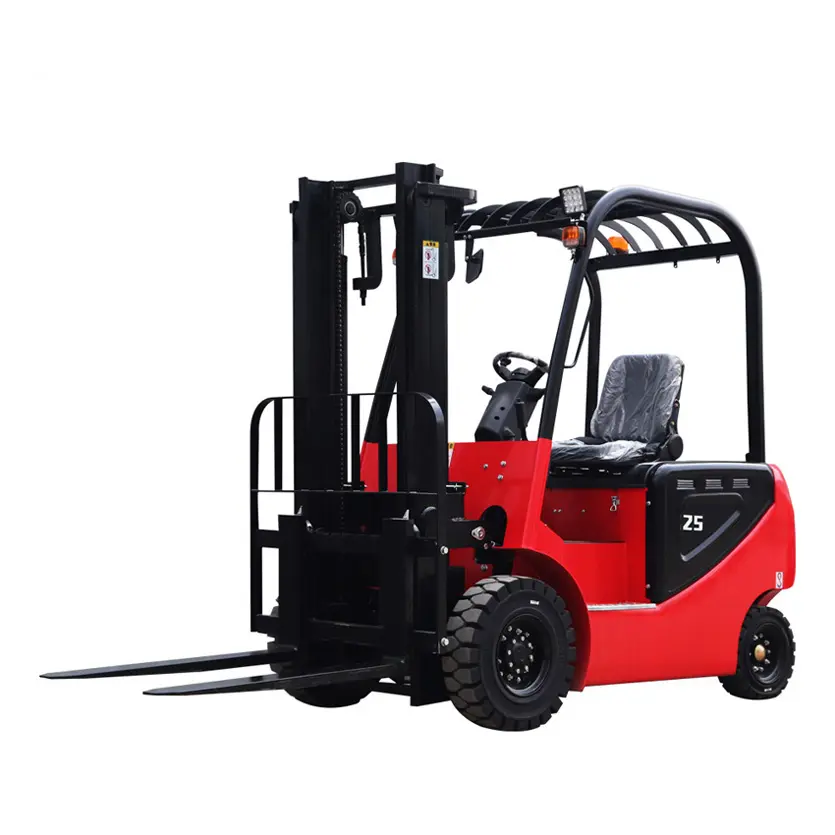

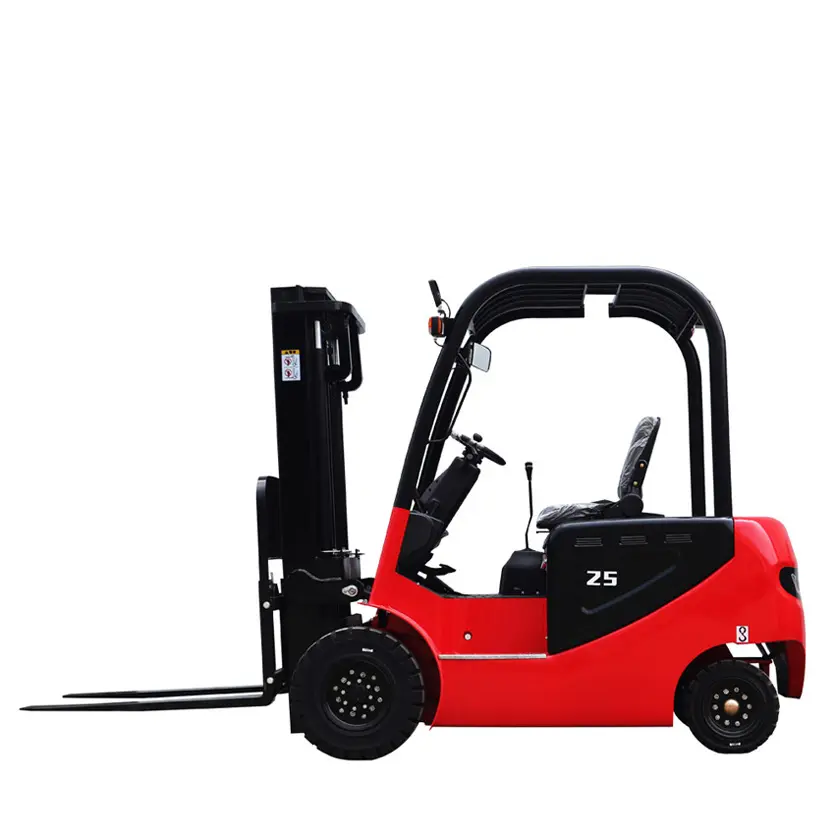

If you are searching for a long‑lasting long runtime electric forklift with minimal maintenance, our lithium‑powered warehouse electric forklift is a smart pick.This modern 2.5ton electric forklift uses lithium iron phosphate battery packs, supporting fast charging and longer continuous running time compared with traditional lead‑acid machines. Designed as a compact electric counterbalance forklift, it keeps a 2000 kg rated load while turning easily in narrow aisles.Many logistics businesses prefer this lithium model over old forklifts. It cuts downtime and lowers long‑term running costs, making it one of our best‑selling 4 wheel electric forklift variants for indoor intensive warehouse operations.
Product Profile:
| Item | Specification |
|---|---|
| Characteristics | |
| Model | HS-25 |
| Driving mode | seated |
| Rated capacity | 2500 kg |
| Load center distance | 500 mm |
| Power mode | lead-acid battery |
| Wheelbase | 1600 mm |
| Performance | |
| Travel speed, laden/unladen | 9 / 10 km/h |
| Lifting speed, laden/unladen | 210 / 250 mm/s |
| Lowering speed, laden/unladen | 450 mm/s |
| Maximum negotiable gradient, laden/unladen | 15 / 20 % |
| Weight | |
| Service mass (with battery) | 3150 kg |
| Axle load: unloaded, front/rear | — |
| Axle load: loaded, front/rear | — |
| Battery voltage / nominal capacity | 72V / 210Ah |
| Battery weight | 360 kg |
| Electrical configuration | |
| Drive motor power-60 minutes | 9 kW, Permanent Magnet Synchronous |
| Lift motor power-15 minutes | 7.5 kW, Magnet Synchronous |
| Drive motor controlling mode | MOSFET/AC |
| Lifting motor controlling mode | MOSFET/AC |
| Service brake / parking brake | Hydraulic / Mechanical |
| Tyre | |
| Tyre type | Solid tire (original typo: Solid fetus) |
| Wheels number (front/rear) | 2 / 2 |
| Front track | W3: 1010 mm |
| Rear track | W2: 880 mm |
| Tyre (front) | 6.5-10 |
| Tyre (rear) | 16*6-8 |
| Size | |
| Front overhang | L2: 410 mm |
| Tilt of the mast, front/rear | α/β: 5 / 10 ° |
| Height, mast retracted | H1: 2030 mm |
| Free lift height | / |
| Overall maximum lift height | H: 3000 mm |
| Height, mast extended | H2: 4055 mm |
| Overhead guard height | H4: 2110 mm |
| Lateral Fork Adjustment (Outside of Forks) Max/Min | 1040 / 100 mm |
| Fork size (L×W×T) | 401001070 mm |
| Truck body length (fork excluded) | L’: 2230 mm |
| Truck body width | W1: 1160 mm |
| Turning radius | R: 2370 mm |
| Ground clearance under mast | H5: 88 mm |
| Ground clearance at center of wheelbase(laden) | H6: 110 mm |
| Width of aisle right-angle stacking (pallet1000×1000mm clearance 200mm) | Ast: 3750 mm |
| Width of aisle right-angle stacking (pallet1200×1200mm clearance 200mm) | Ast: 3950 mm |
